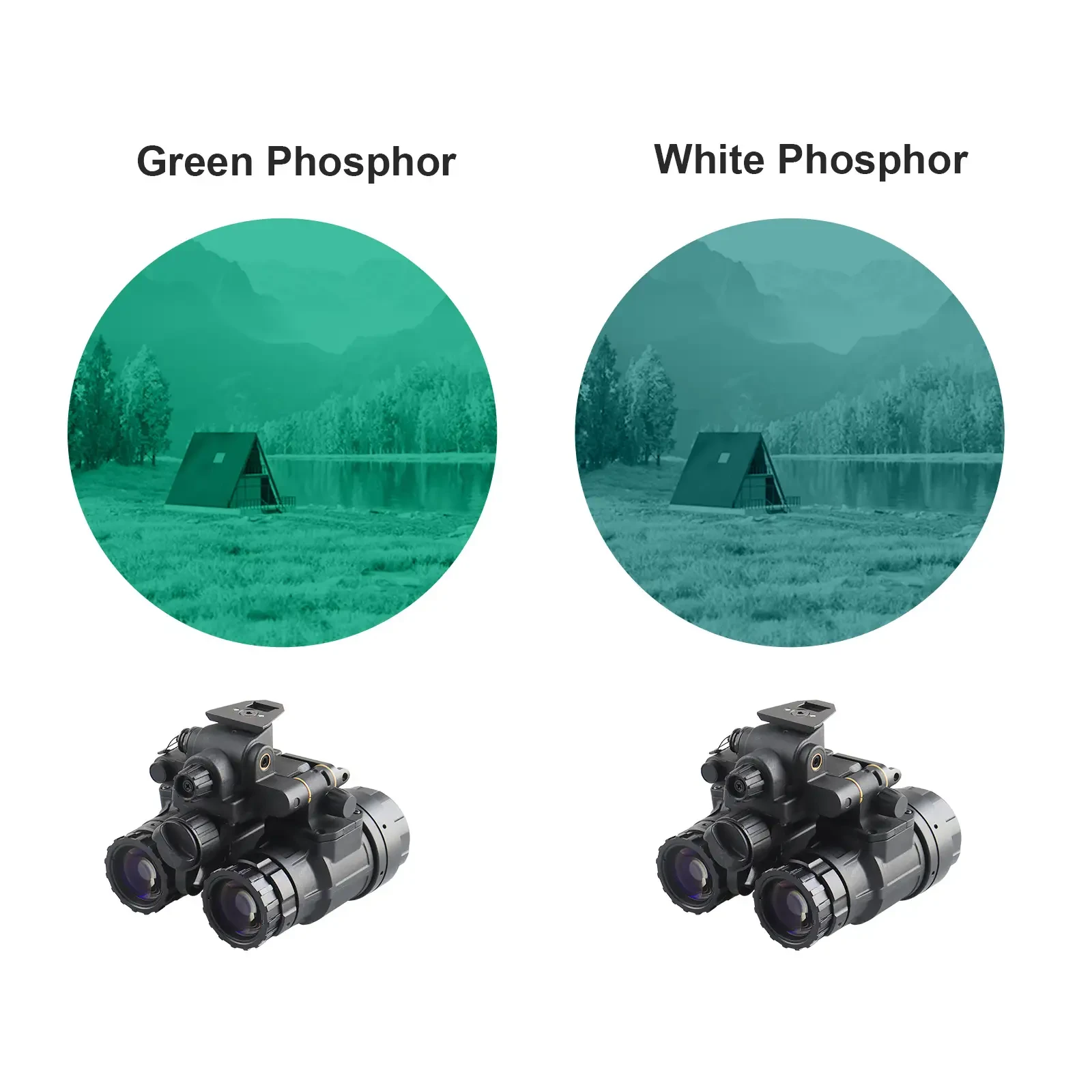

Green and white phosphor viewing examples beside PVS-31 goggles

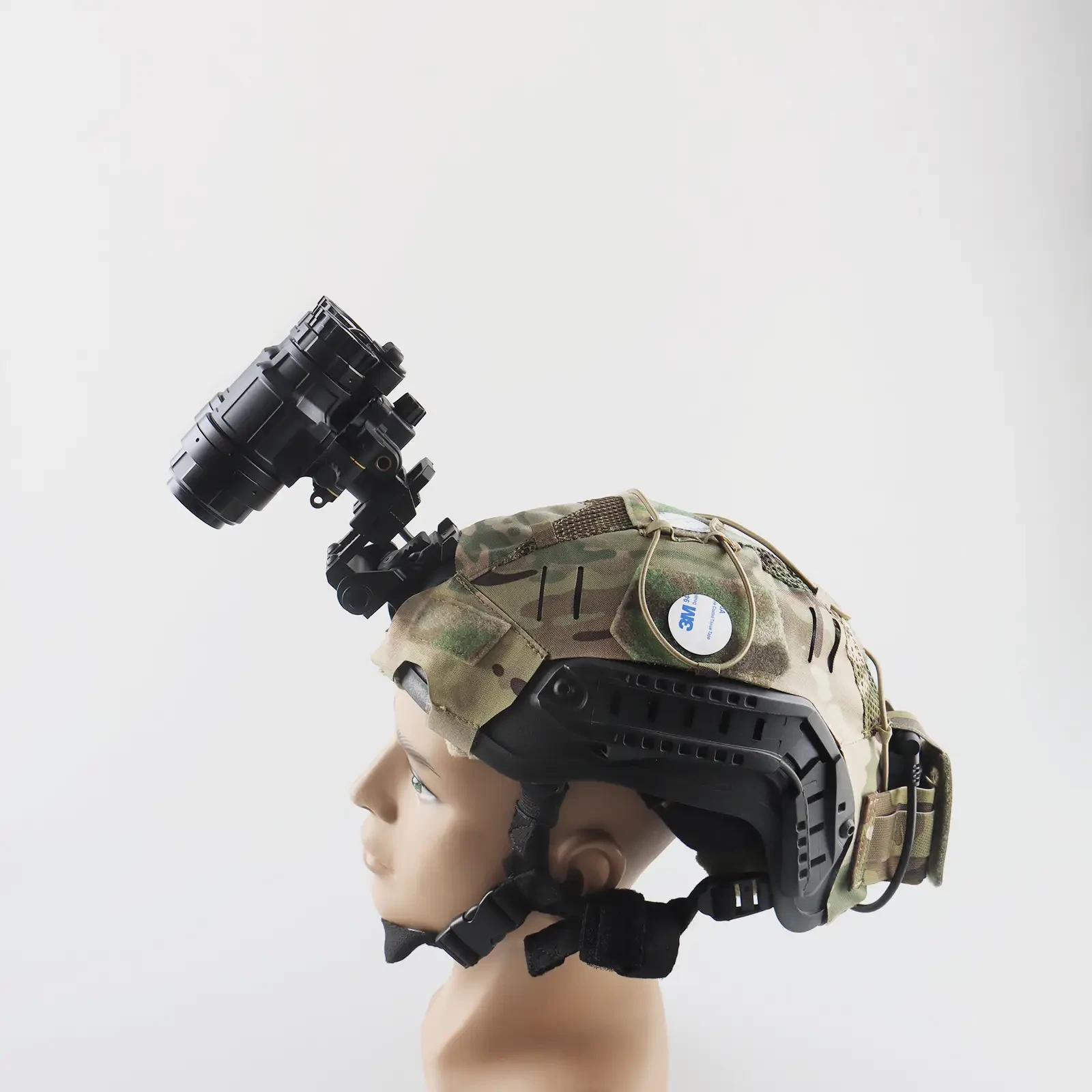

PVS-31 helmet-mounted goggles flipped upward

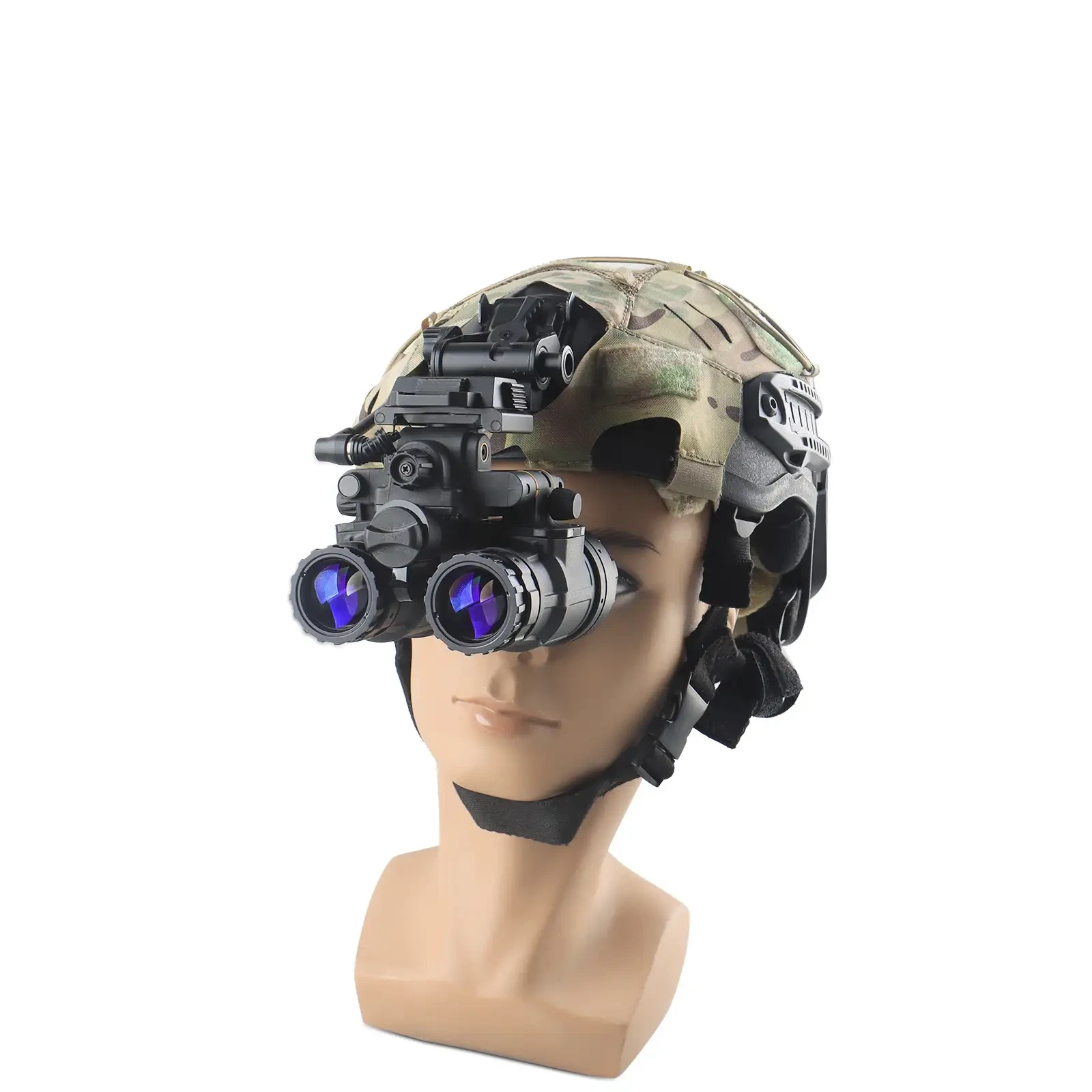

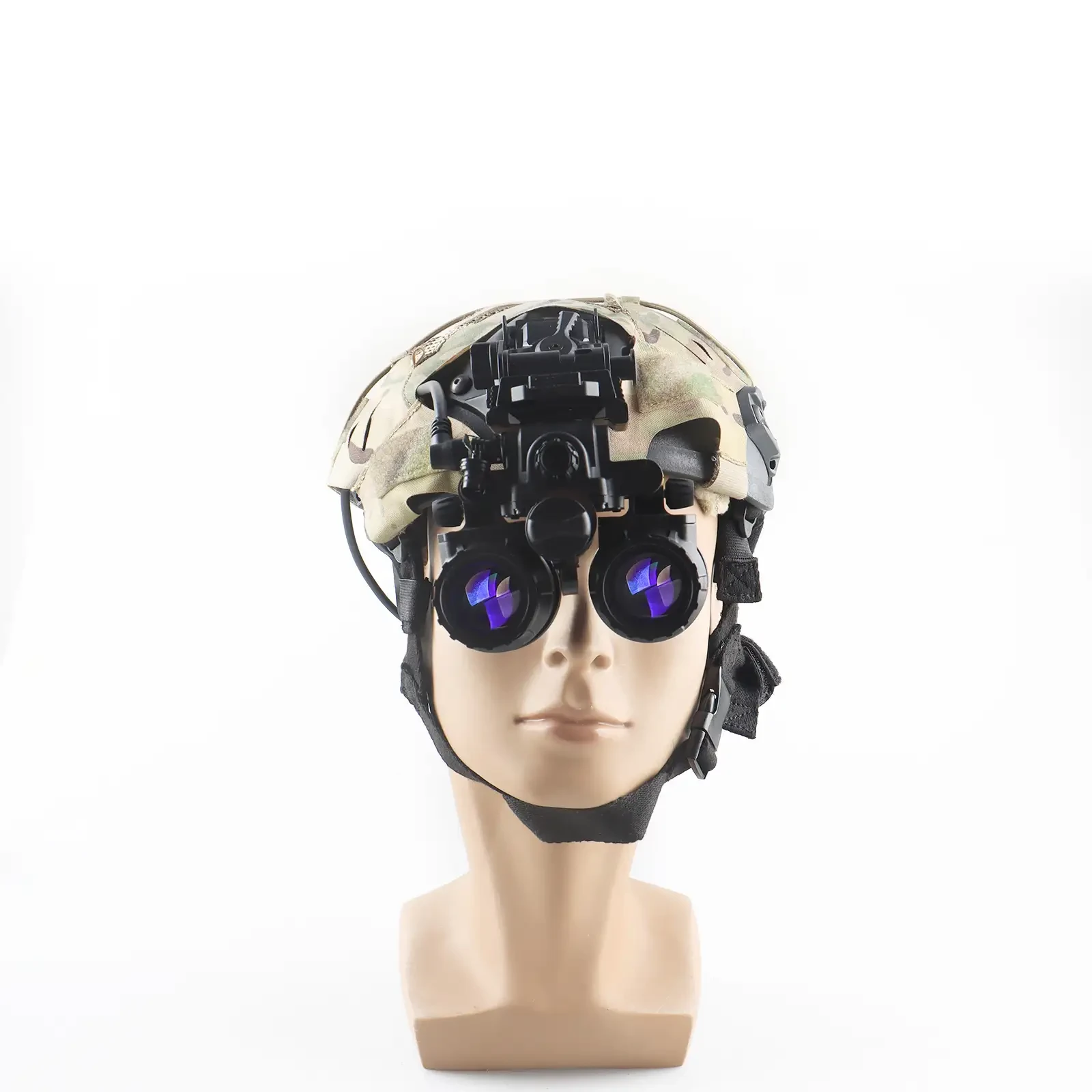

Front view of PVS-31 goggles on a helmet display head

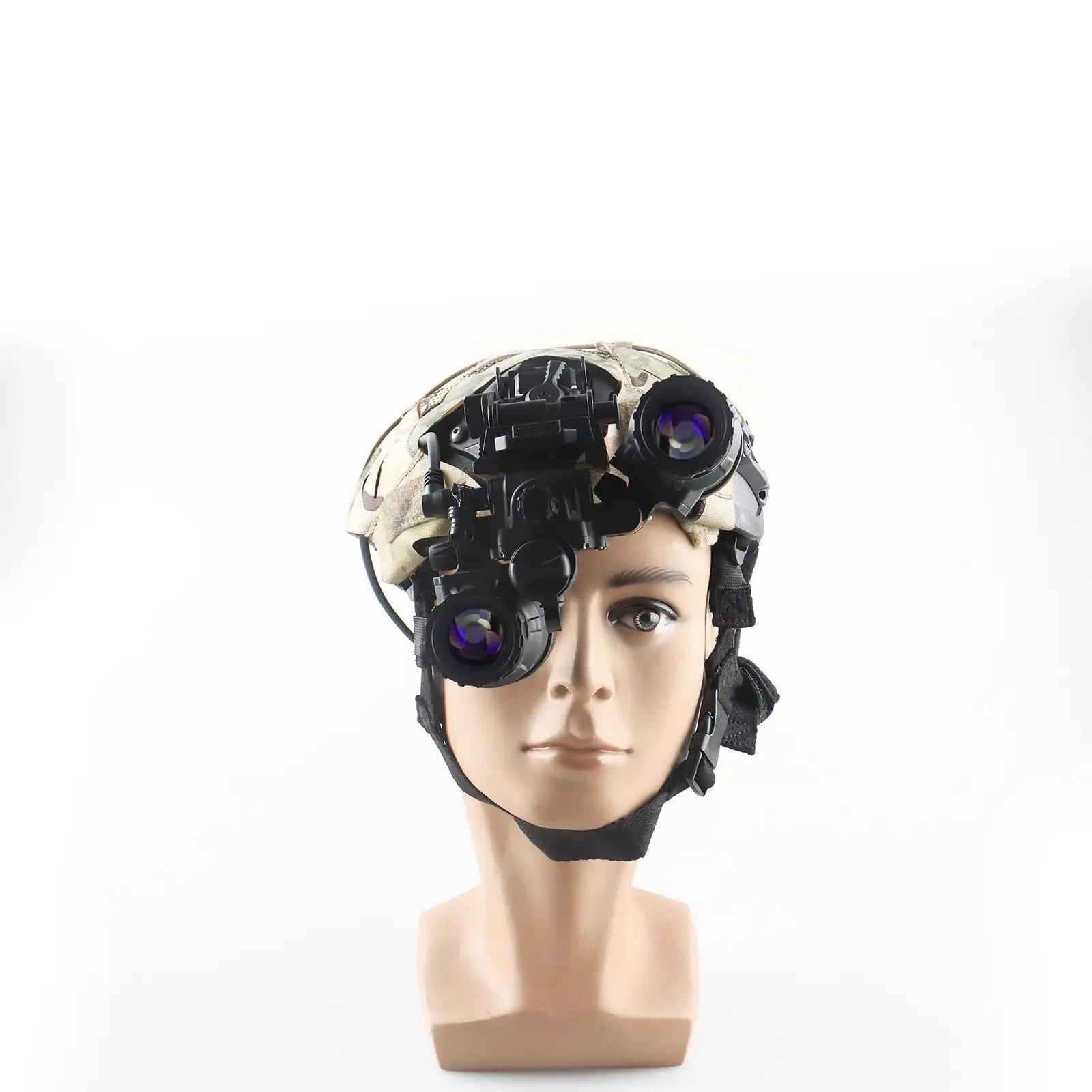

PVS-31 dual pods folded outward on helmet

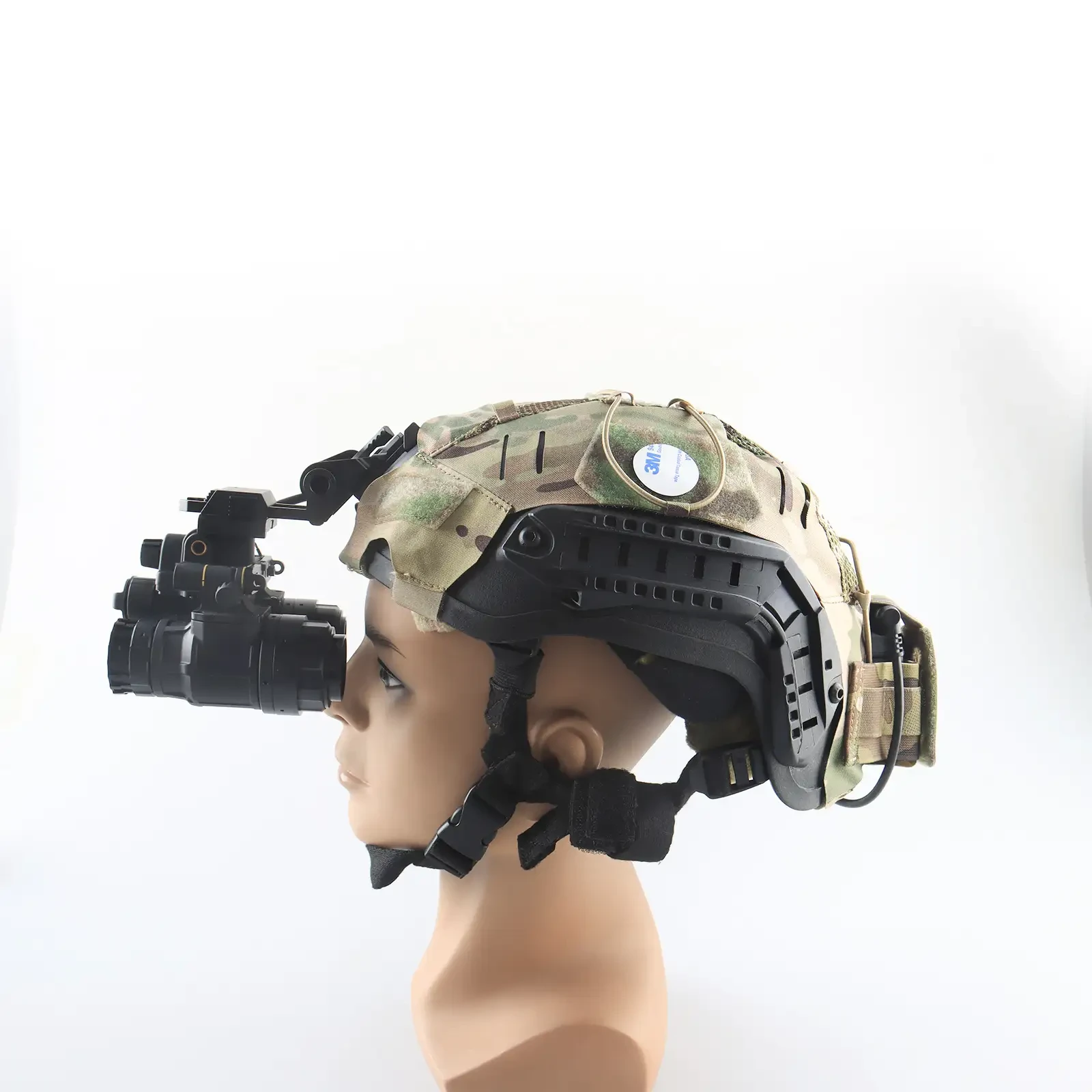

Side view of deployed PVS-31 helmet setup

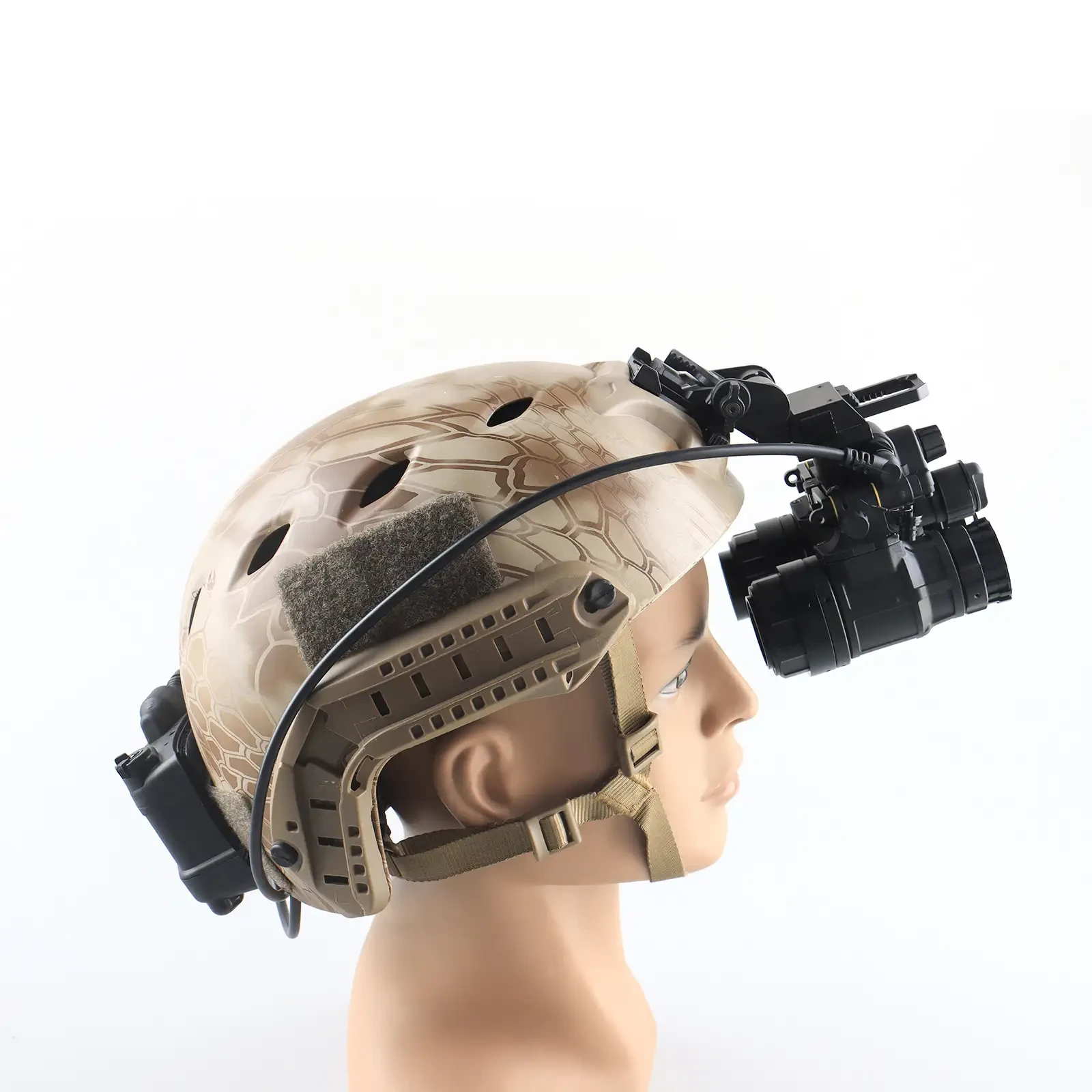

Opposite side view of helmet and PVS-31 mount

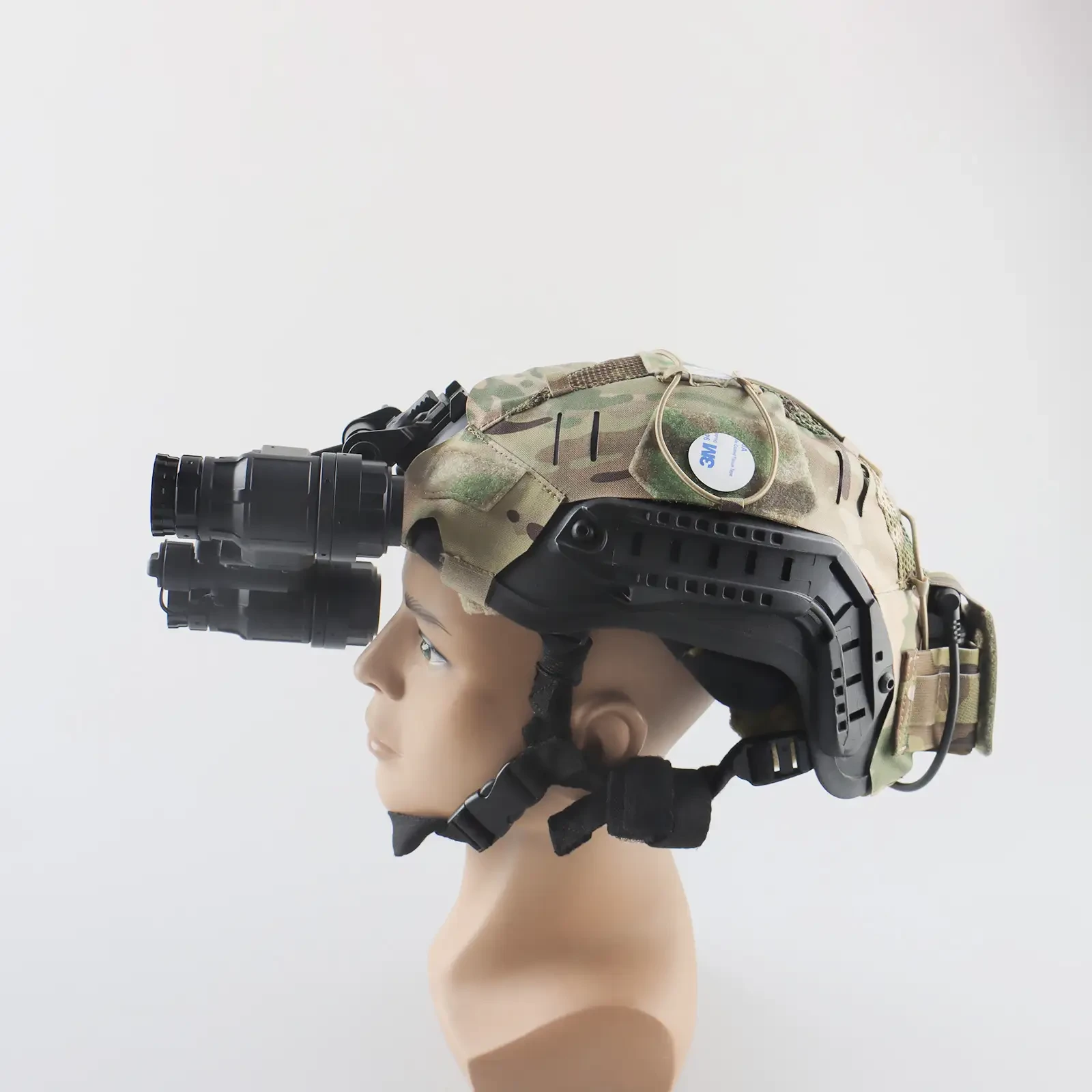

Side view of PVS-31 goggles and helmet battery cable

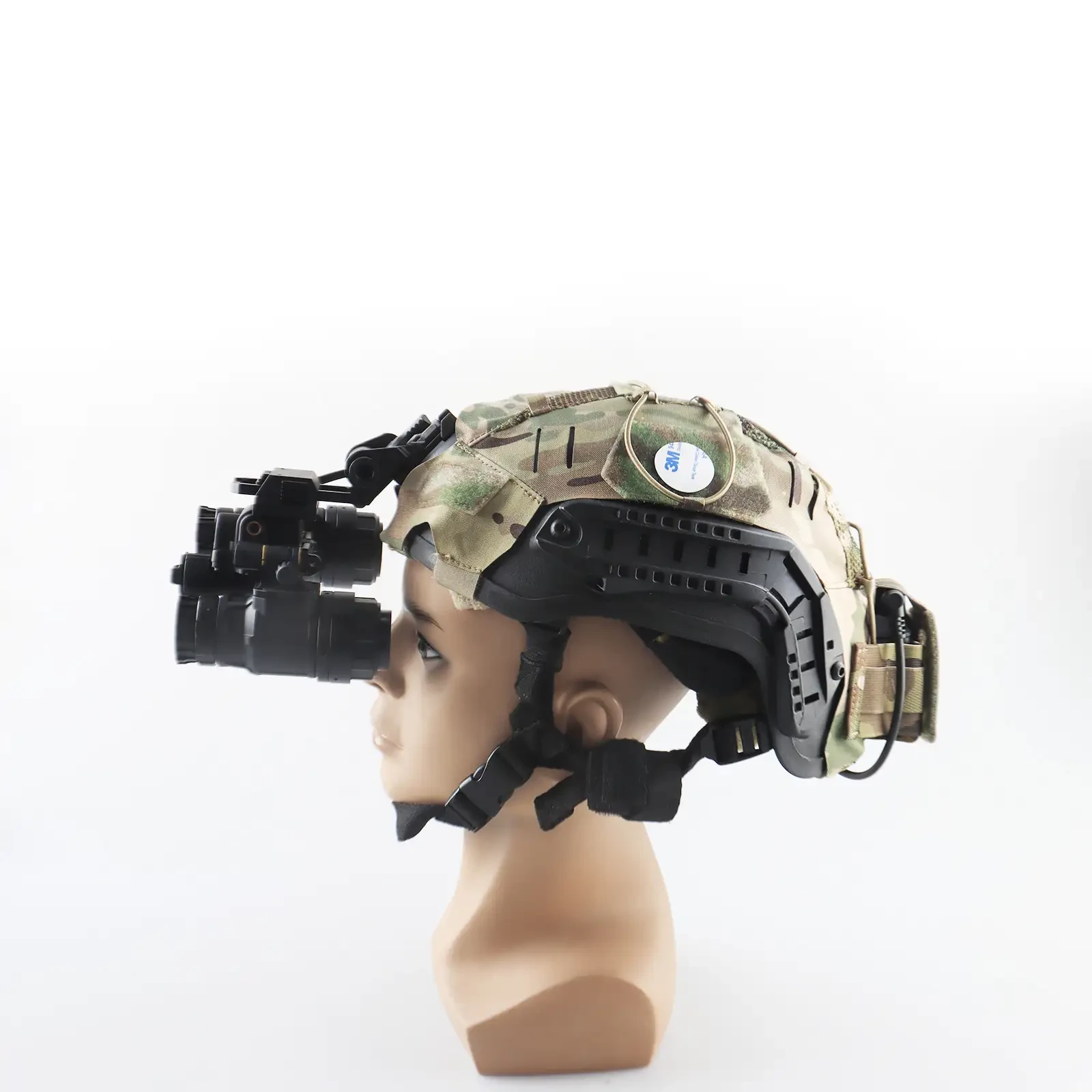

Helmet setup showing PVS-31 front projection

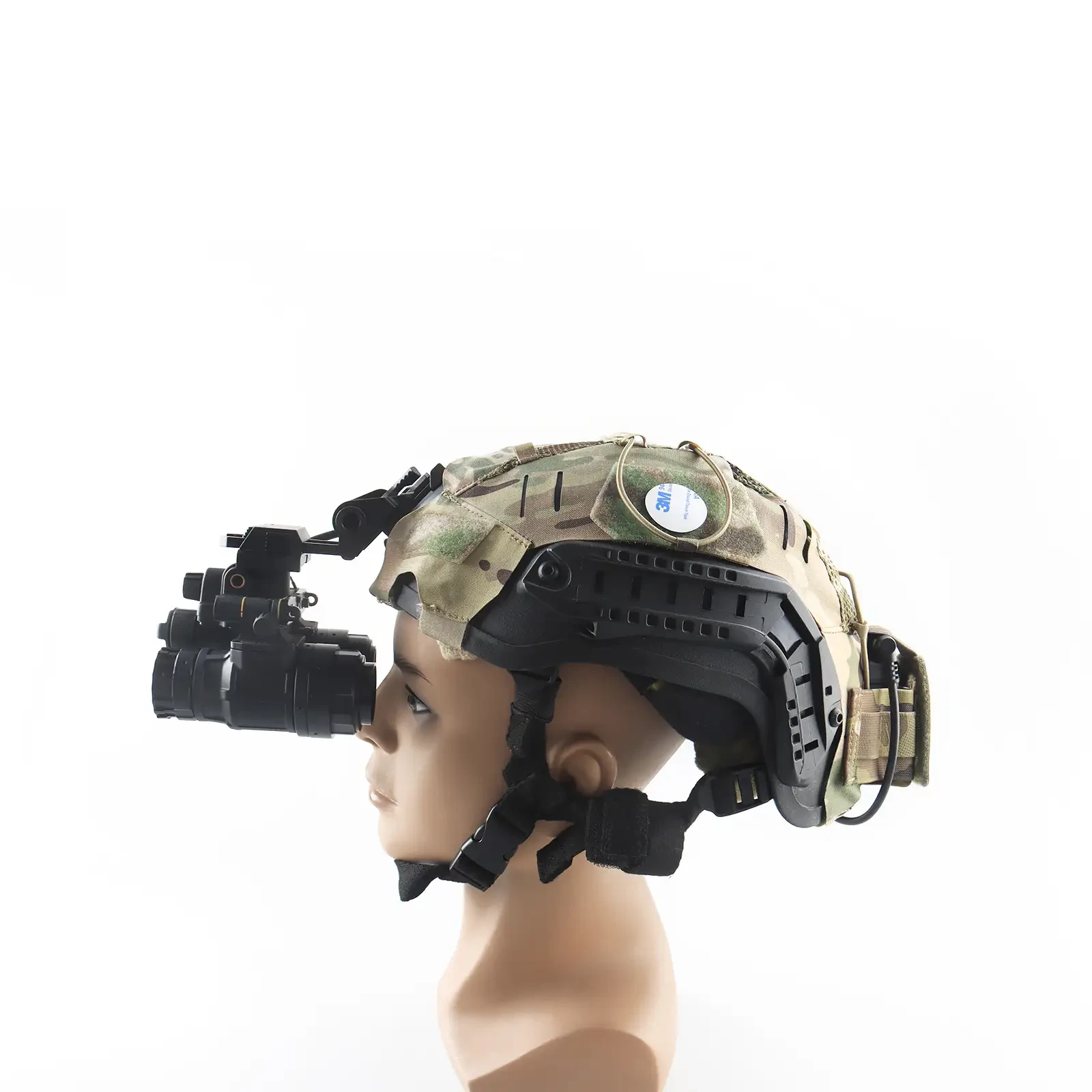

PVS-31 goggles beside helmet mounting arm

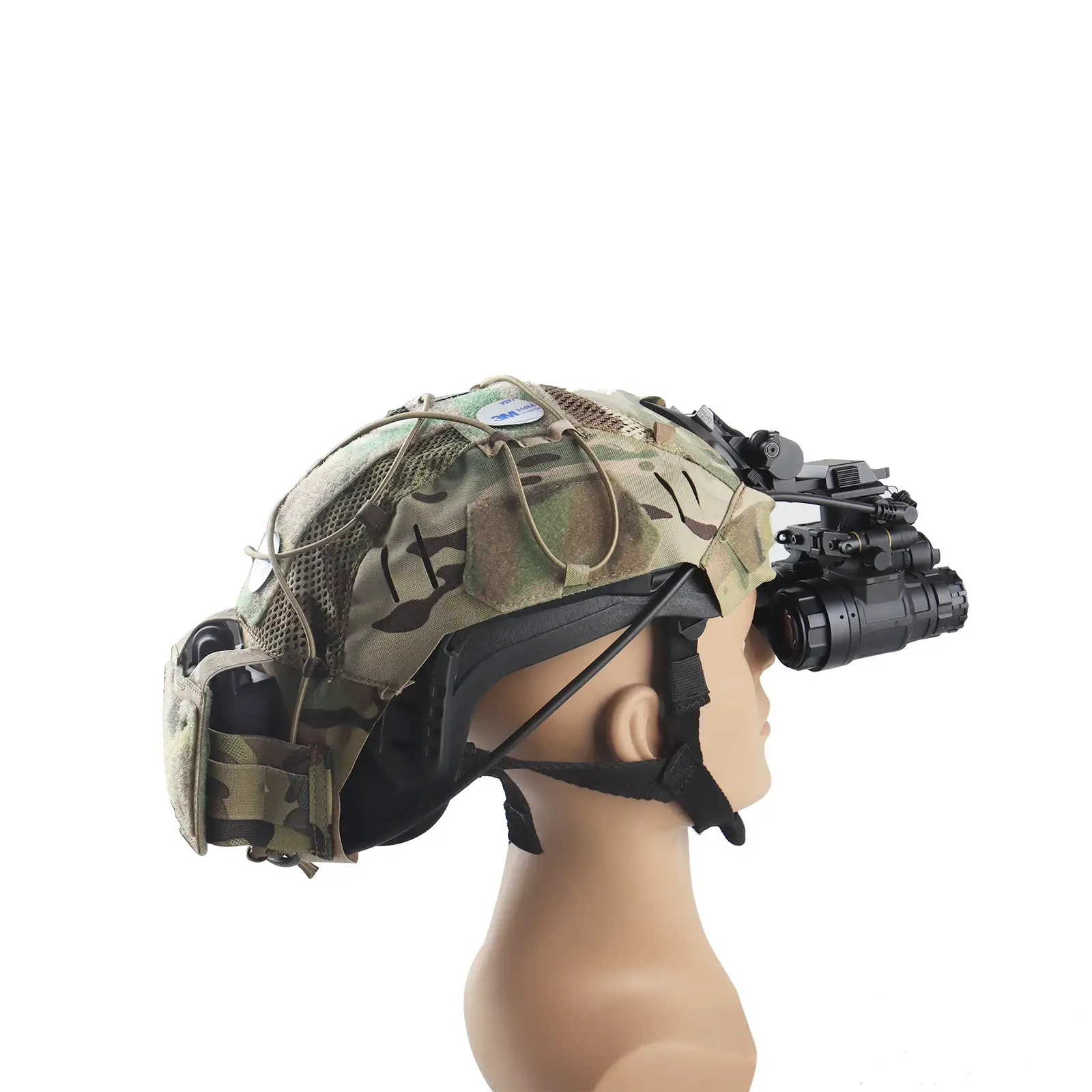

Helmet rear and side view with PVS-31 setup

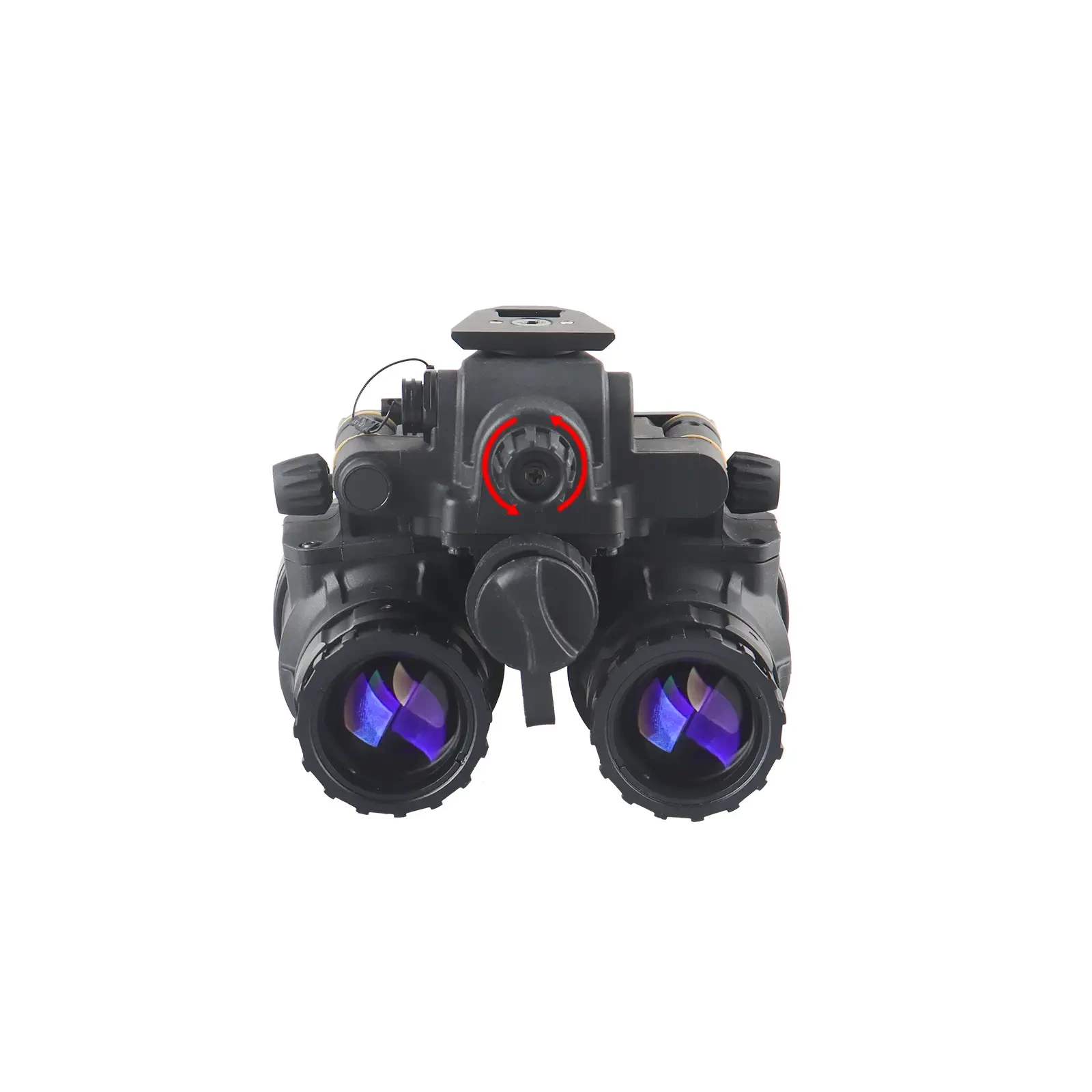

PVS-31 front view with highlighted adjustment control

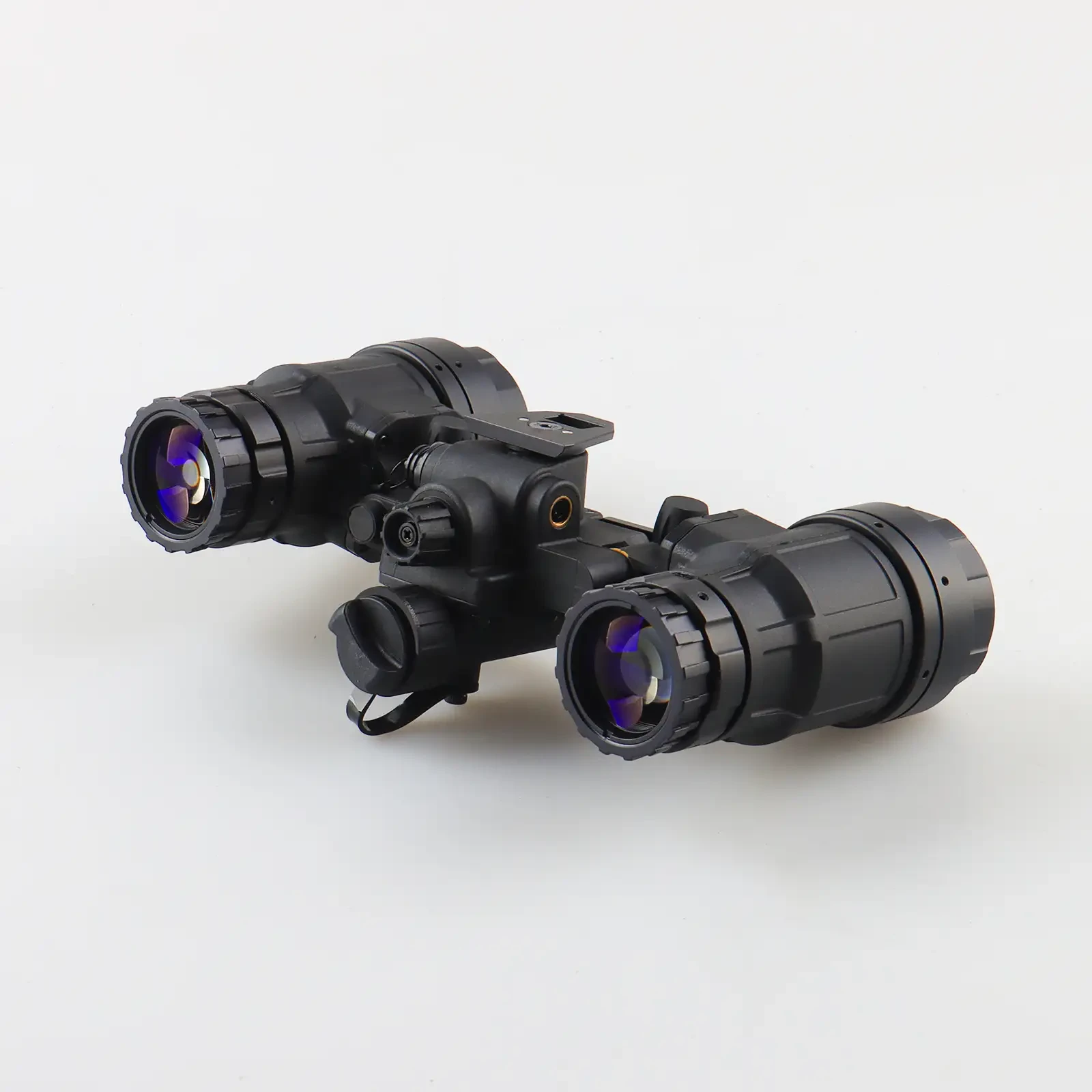

PVS-31 binocular night vision goggles side three-quarter view

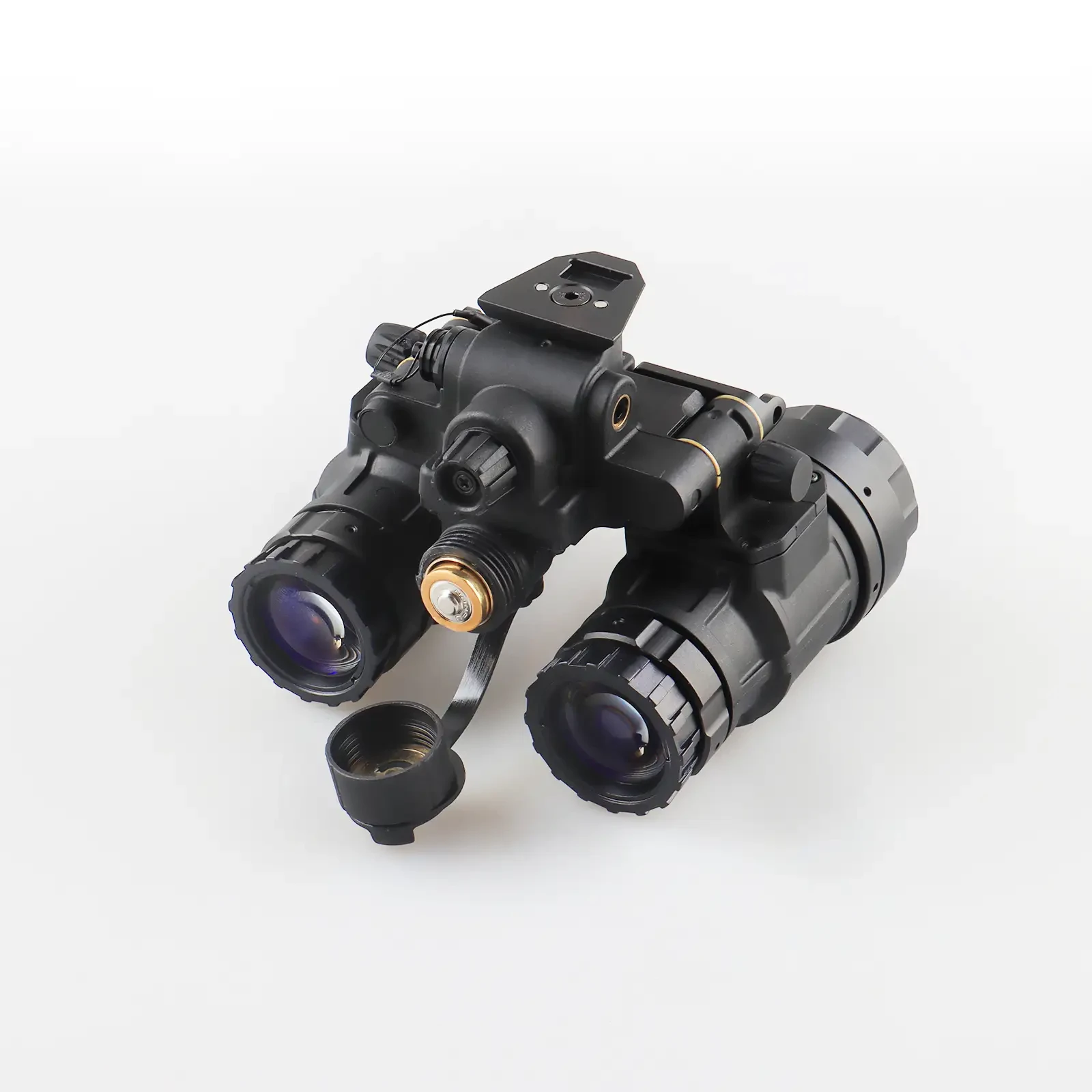

PVS-31 goggles showing dovetail plate and lenses

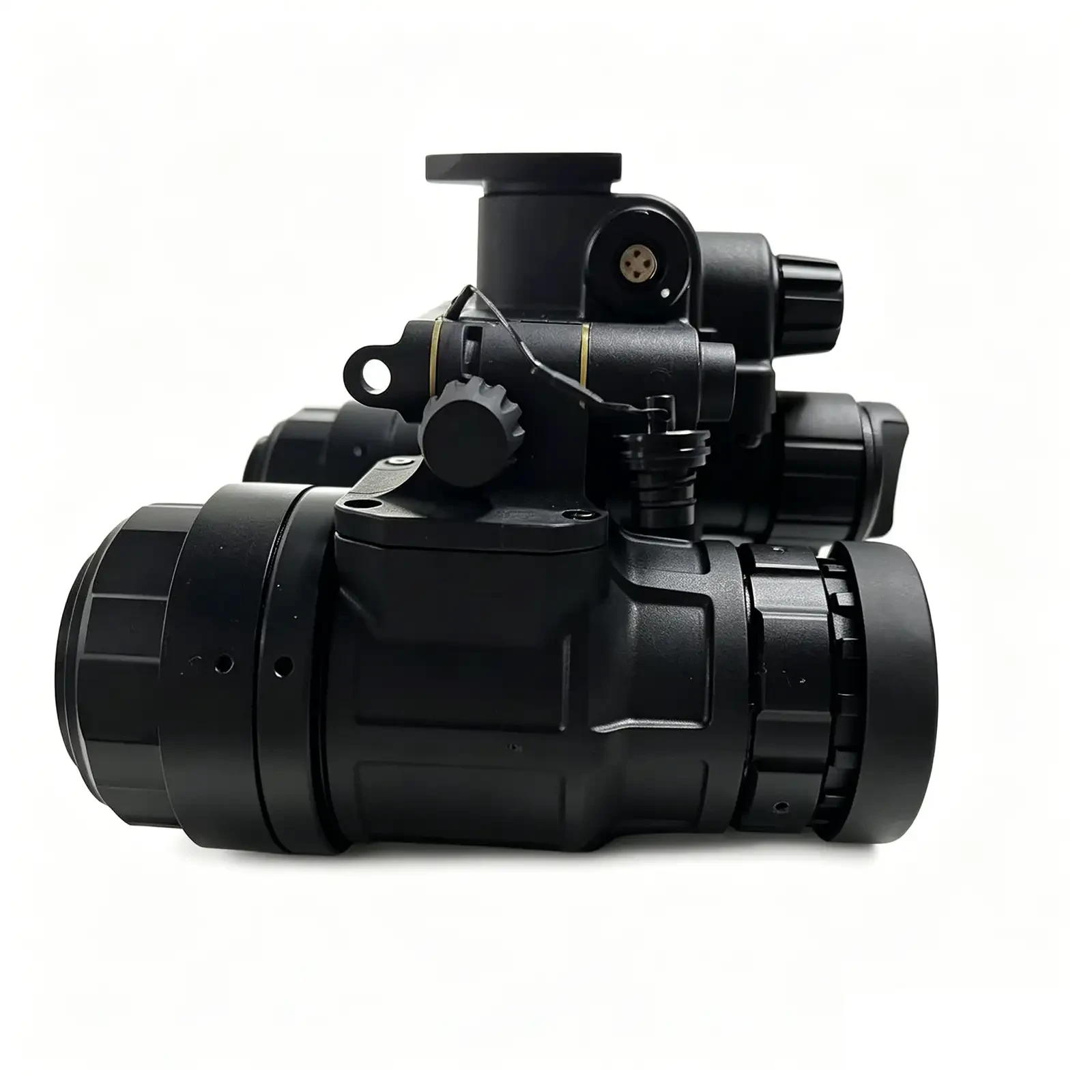

PVS-31 rear view showing eyepieces and hinge

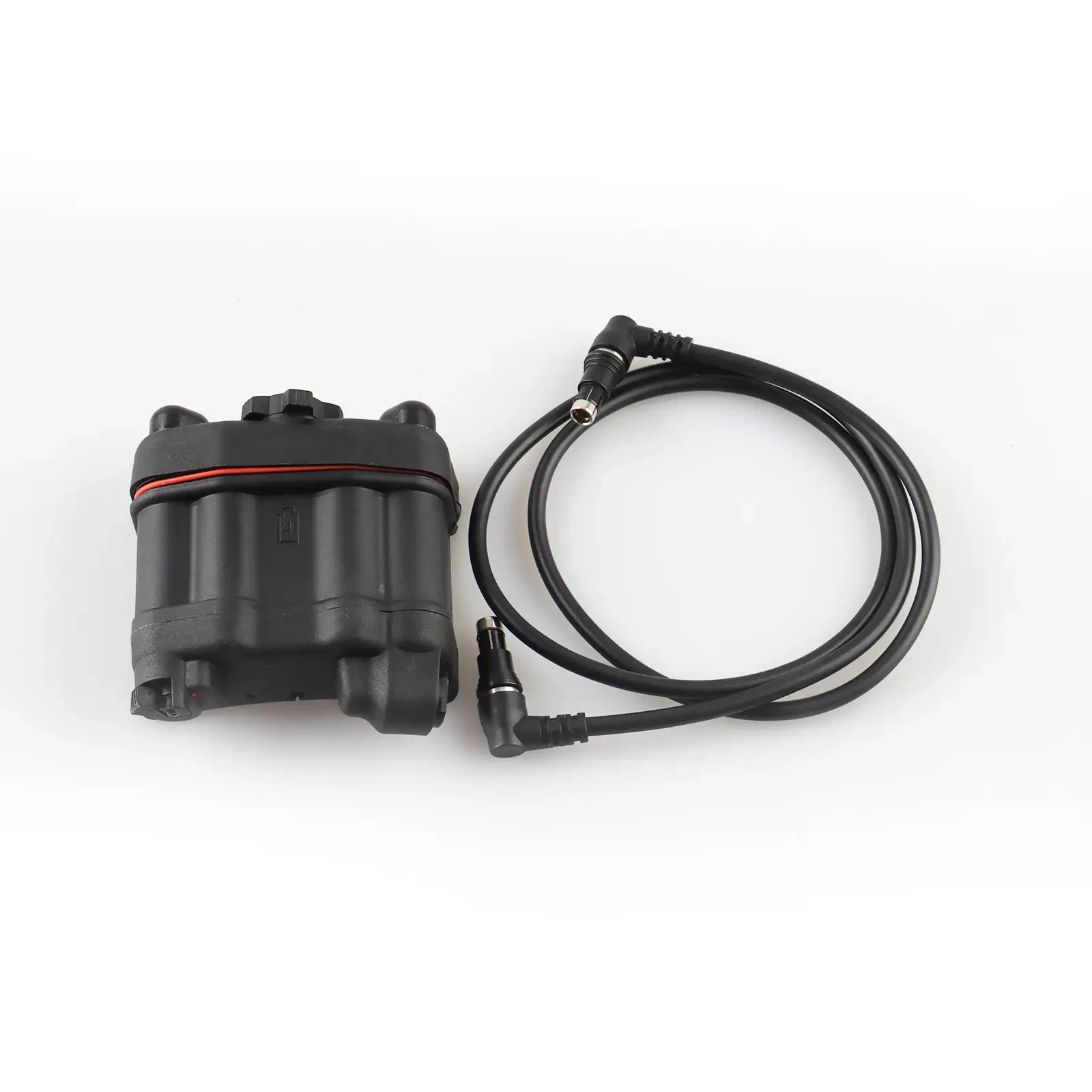

External battery pack with connection cable

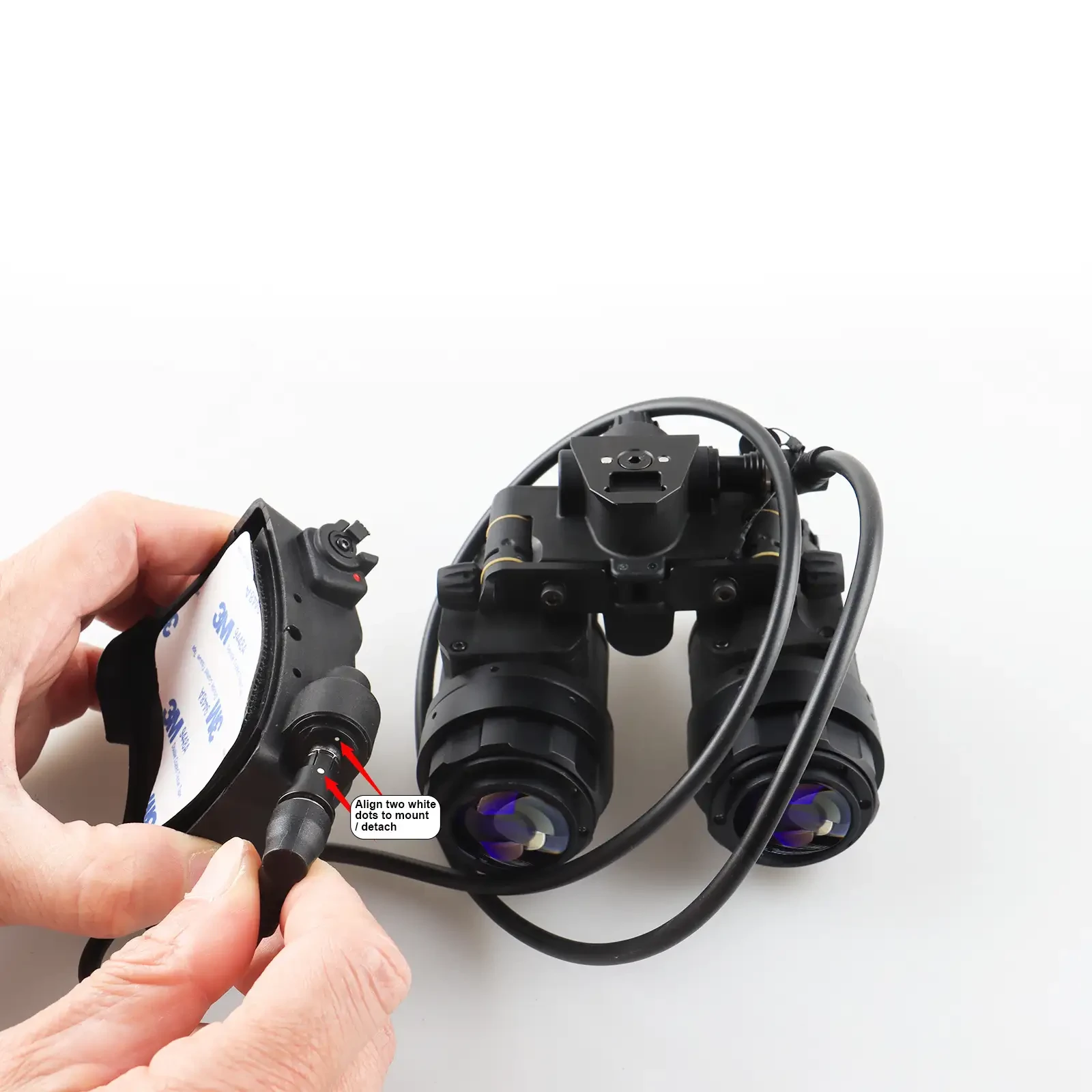

Hands opening external battery pack compartment

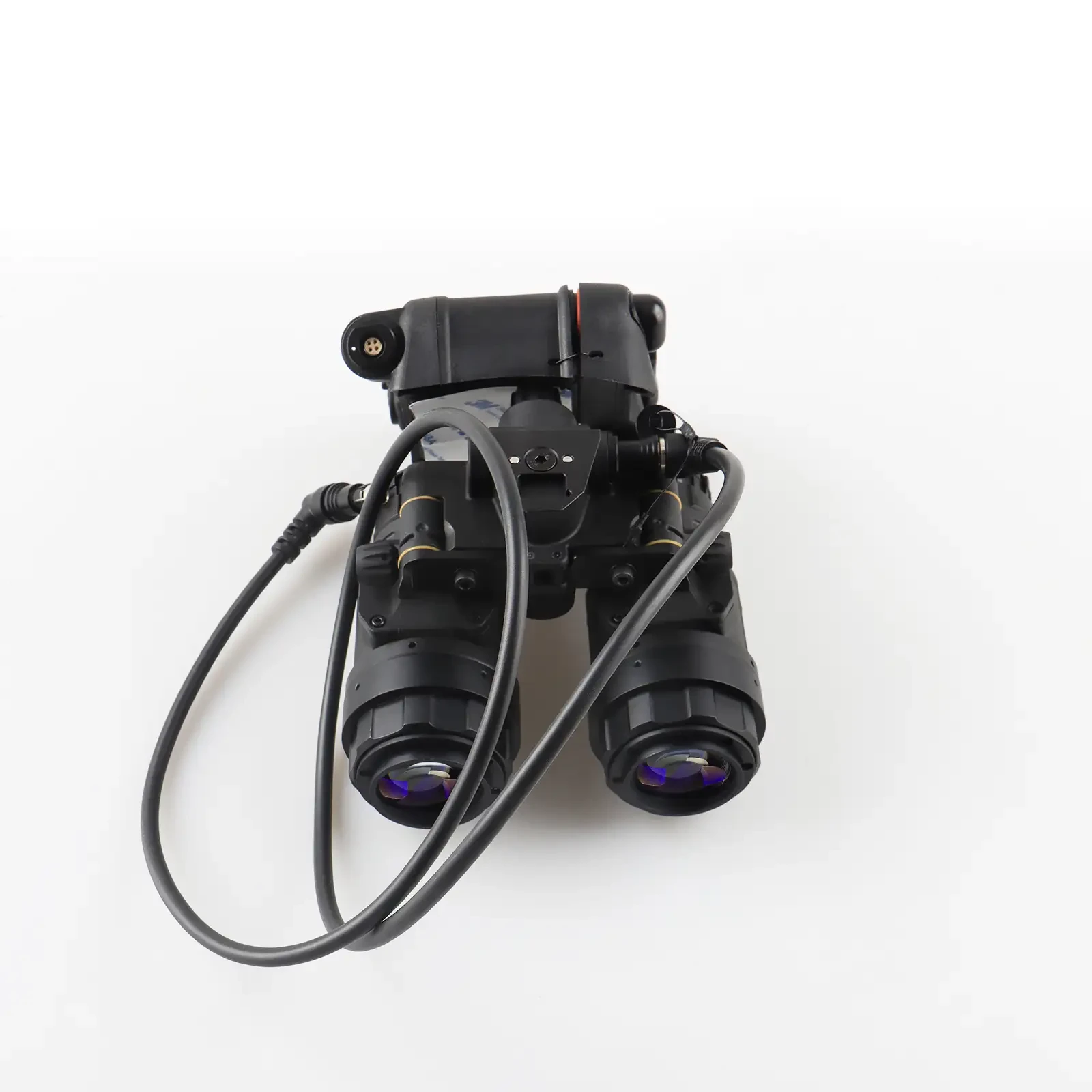

PVS-31 rear view with external power cable

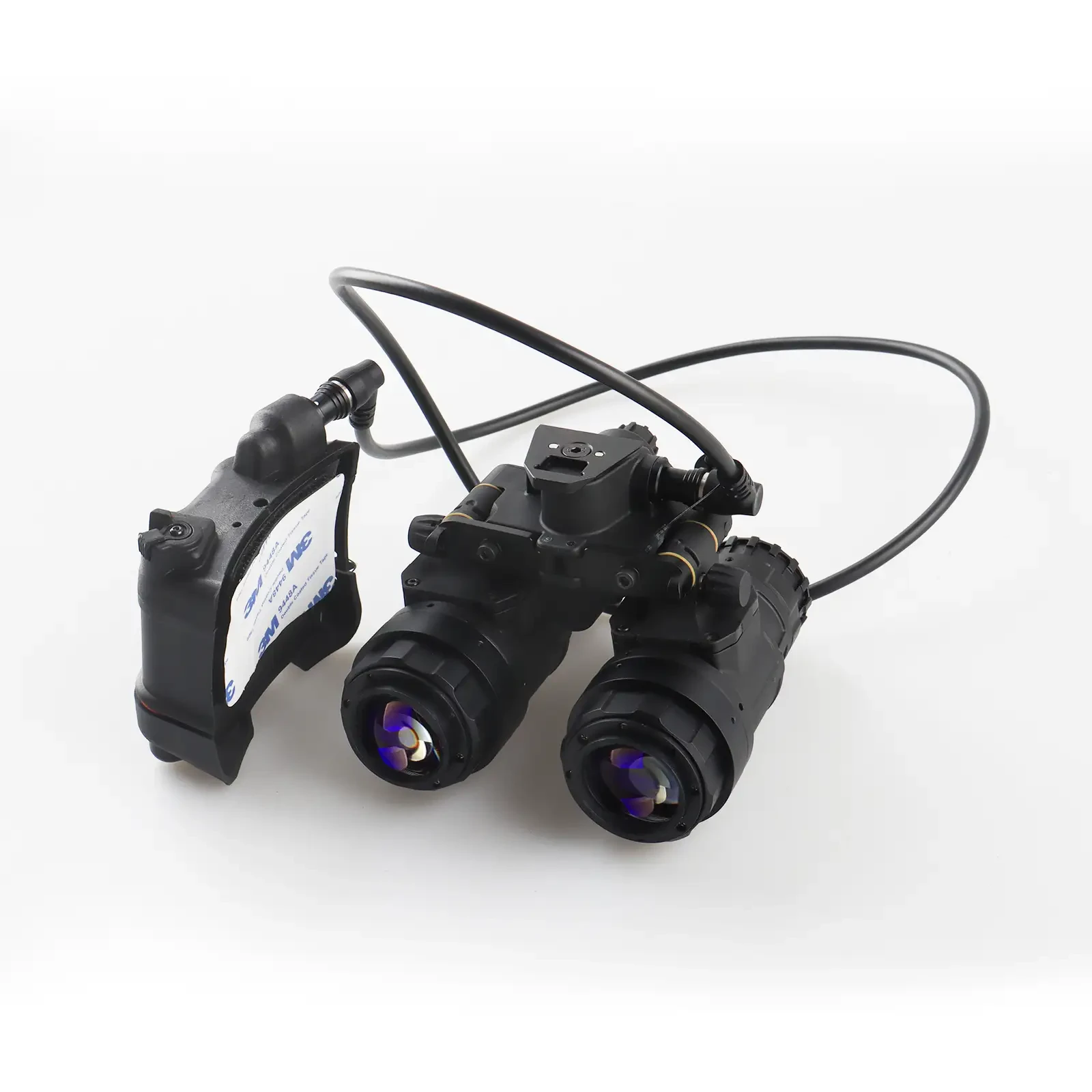

PVS-31 connected to external battery pack

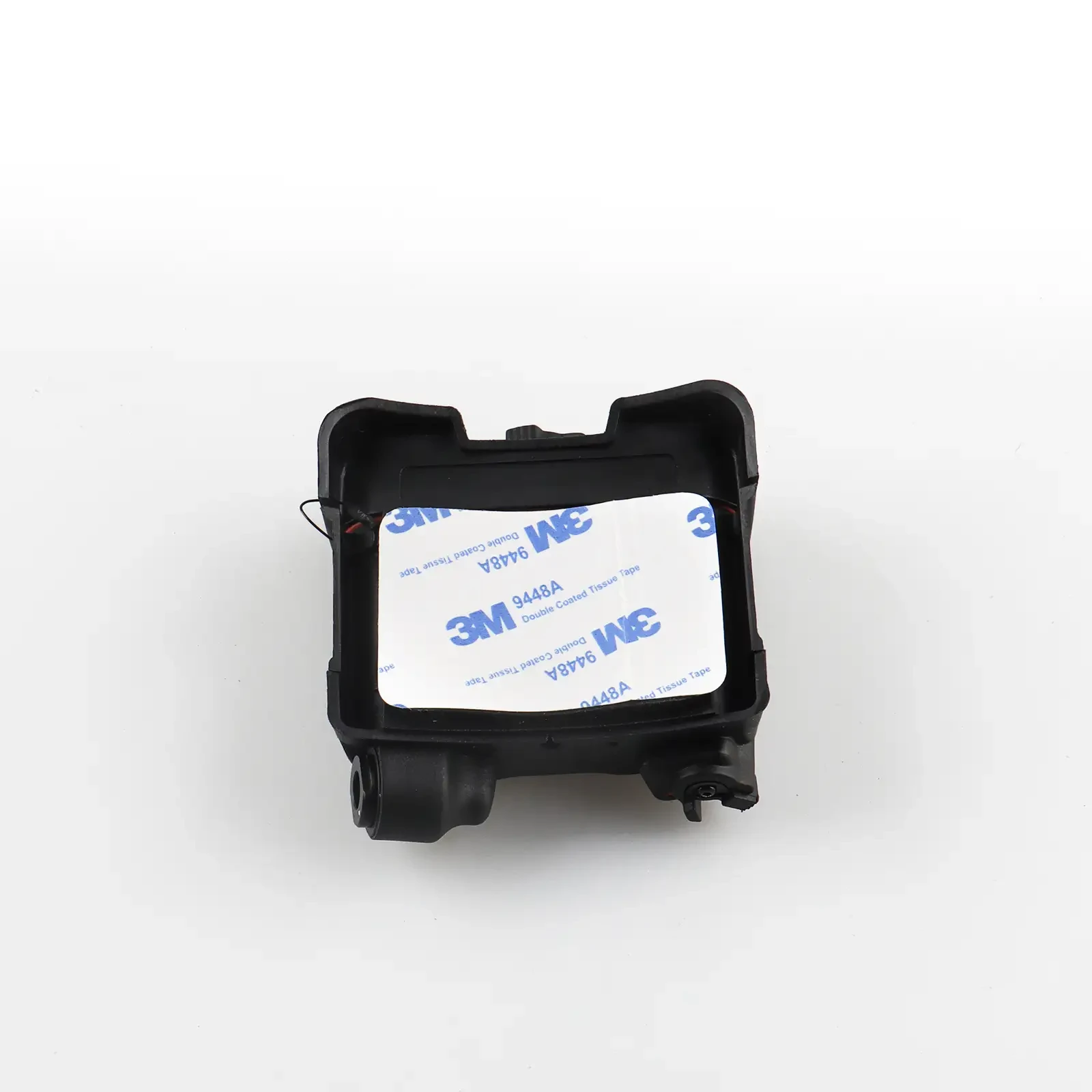

Battery compartment with protective tape example

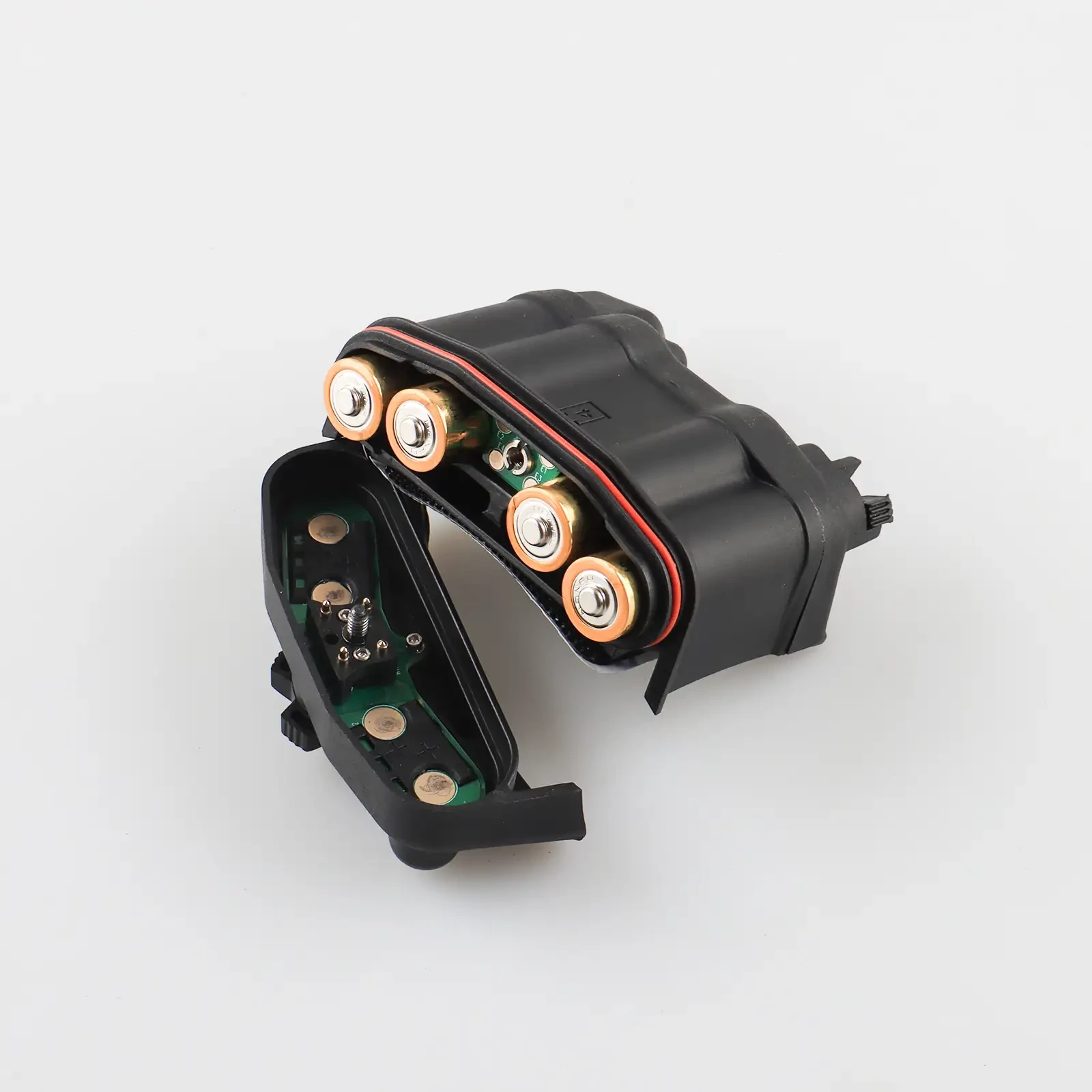

Open external battery pack showing battery positions

Night Vision Devices

YSS PVS-31 NNVT Binocular Night Vision Goggles with Battery Pack

Name: YSS PVS-31 NNVT Binocular Night Vision Goggles with Battery Pack
Brand: YSS
SKU: HK27-0037

SKU: HK27-0037

Brand: YSS

Configurable binocular night vision with Gen2+/Gen3 18 mm NNVT tubes, FOM 1400–1800 options, white or green phosphor, and battery pack configuration. Request a wholesale quote.

Inquire Now Back to Night Vision Devices

Product Description

PVS-31 NNVT binocular night vision

YSS HK27-0037 is a binocular night vision product family with independent articulating pods and configuration choices for wholesale buyers. Specify your required image intensifier configuration and battery pack when requesting a quotation.

Configuration choices

The factory page lists FOM 1400, 1600 and 1800 options; Gen2+ and Gen3; white or green phosphor; auto-gated or non-gated tubes; and manual or automatic gain. Availability depends on the complete combination. Manual gain requires the corresponding compatible tube configuration.

Factory-published specifications

Product family SKU	HK27-0037
Brand	YSS
Image intensifier format	18 mm NNVT; Gen2+ / Gen3 configuration options
Magnification	1x
Field of view	Approximately 40 degrees
Weight	Less than 450 g with tubes, excluding battery; configuration dependent
Interpupillary distance	50–80 mm, as described by the factory
Power	One AA battery or external four-AA battery pack
Runtime	Approximately 15 hours on one AA; around 50 hours with external pack, depending on conditions
Mount interface	Dovetail interface; confirm the exact helmet mount before ordering
Factory-stated protection	IP67; request model-specific supporting documentation
Factory-stated operating temperature	-40°C to +60°C; confirm configuration and test documentation

Published configuration examples

The following combinations are transcribed from the factory page. They are configuration references, not a guarantee of current stock. Source variant identifiers may be repeated; quote the full configuration rather than relying on the suffix alone.

FOM	Phosphor	Generation	Gating	Gain
1400	White Phosphor	GEN2+	AUTOGATE	Manual Gain
1400	White Phosphor	GEN2+	AUTOGATE	Auto Gain
1400	White Phosphor	GEN2+	NON-GATED	Manual Gain
1400	White Phosphor	GEN2+	NON-GATED	Auto Gain
1400	White Phosphor	GEN3	AUTOGATE	Manual Gain
1400	White Phosphor	GEN3	AUTOGATE	Auto Gain
1400	White Phosphor	GEN3	NON-GATED	Manual Gain
1400	White Phosphor	GEN3	NON-GATED	Auto Gain
1400	Green Phosphor	GEN2+	AUTOGATE	Manual Gain
1400	Green Phosphor	GEN2+	AUTOGATE	Auto Gain
1400	Green Phosphor	GEN2+	NON-GATED	Manual Gain
1400	Green Phosphor	GEN2+	NON-GATED	Auto Gain
1400	Green Phosphor	GEN3	AUTOGATE	Manual Gain
1400	Green Phosphor	GEN3	AUTOGATE	Auto Gain
1400	Green Phosphor	GEN3	NON-GATED	Manual Gain
1600	White Phosphor	GEN2+	AUTOGATE	Manual Gain
1800	White Phosphor	GEN3	AUTOGATE	Auto Gain
1800	Green Phosphor	GEN3	AUTOGATE	Auto Gain

Battery pack and package confirmation

The factory product is presented with a battery pack. Confirm the battery pack, cable, tubes, lenses and other included accessories for your selected configuration. A dovetail interface does not establish that a helmet mount or helmet is included.

Request a wholesale quotation

Include quantity, FOM, generation, phosphor, gating, gain, battery pack requirements and destination market. Factory source reference price range: USD 3,739–6,667 at the time of the supplied page capture. Final pricing, availability, documentation and lead time are confirmed in the quotation.

Choose a PVS-31 configuration

Quote the complete combination of FOM, tube generation, phosphor, gating and gain. FOM alone does not describe all image quality; request the tube specification for the exact configuration. Confirm which battery pack, cable and mount accessories are included.

Compare night vision device options and request a configuration-specific wholesale quote.

Product and ordering information

Applications: Hunting and forestry applications.
Customization: OEM, ODM and private labeling can be discussed for this model.
Packaging: Color box packaging.

Before requesting a quotation

Include this product model or page link, your company, destination market, estimated quantity and intended purchase date.

Confirm the exact configuration, mounting interface and included accessories.
Specify any logo, packaging or customization requirements.
Request model-specific specifications and applicable documentation.
Confirm sample terms, minimum quantity, lead time, shipping and warranty coverage in the quotation.
