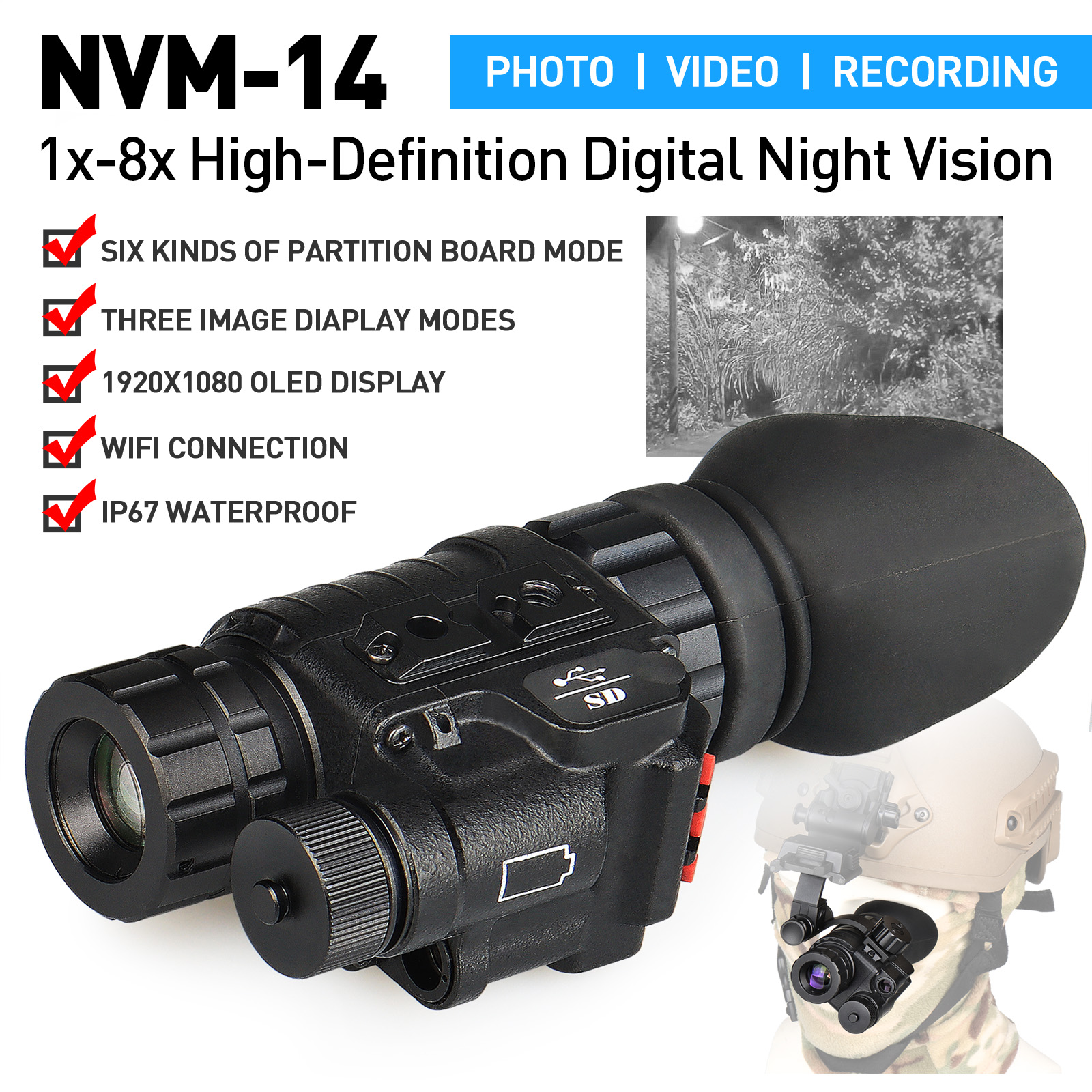

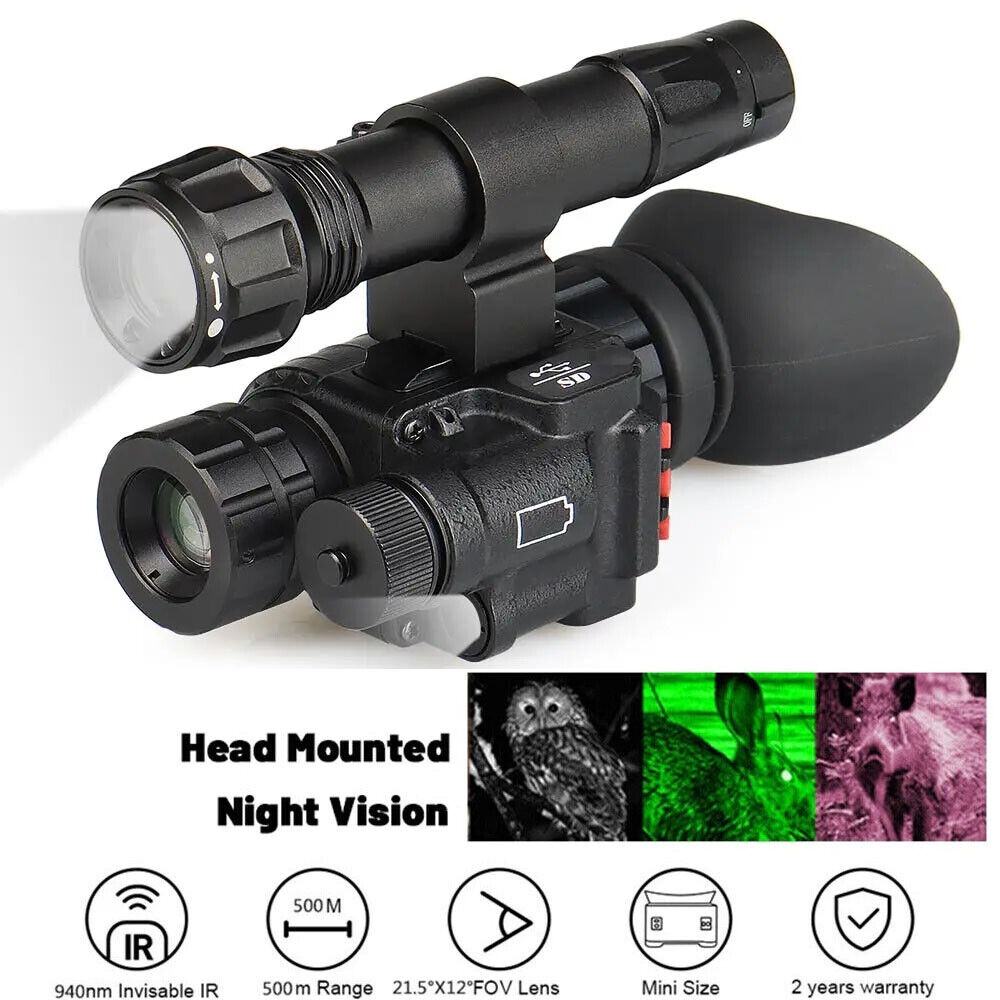

1x-8x Monocular 850nm Infrared NVM-14 High-Definition Digital Night Vision with WIFI

The NVM-14 High-Definition Digital Night Vision device revolutionizes low-light observation with a 21.5°X12° field of view (FOV), combining 850nm infrared technology and WiFi connectivity for tactical precision. Equipped with a 1920X1080 OLED display, this monocular delivers six partition board modes and three image display modes, enabling seamless adaptation to hunting, surveillance, or tactical operations. The IP67 waterproof rating ensures reliability in harsh weather, while the aircraft-grade aluminum housing resists impacts and corrosion. Featuring 1x-8x variable magnification, the NVM-14 supports real-time video recording and photo capture via an 8GB to 128GB TF/Micro SD card slot, ideal for documenting field observations. The built-in WiFi allows wireless transmission to mobile devices, enhancing situational awareness. Whether tracking game at night or conducting covert operations, this night vision monocular’s high-definition optics and rugged design make it an essential tool for professionals. Backed by military-grade craftsmanship, the NVM-14 balances performance with portability—weighing just 380g for extended use without fatigue.

• High-Definition Digital Night Vision: The NVM-14 is equipped with a high-definition digital night vision that provides a clear and sharp image even in the dark. It has a field of view of 21.5°x12° and an electron magnification of 1x-8x, allowing you to see far away objects with great detail.
• WIFI Connectivity: The NVM-14 is equipped with WIFI connectivity, allowing you to connect to your smartphone or other devices to view and share your images and videos.
• OLED Display: The NVM-14 features a 1920x1080 OLED display, providing a clear and vivid image.
• Waterproof: The NVM-14 is IP65 waterproof, making it suitable for use in wet and humid environments.
• Video Function: The NVM-14 has a video function, allowing you to record and store your images and videos on a 8GB-128GB TF Micro SD Card. It also has a date and time setting, allowing you to easily keep track of when your images and videos were taken.

Electron Magnification	1x-8x
Optical Magnification	1x
Field of View(FOV)	21.5°x12°
Objective Parameters	19.58mm / F1.2
Sensor	0.0001LUX Ultra low illumination black and white sensor
Display	1920x1080 OLED display
Exit Pupil Diameter	7.0mm
Pupillary Exit Distance	27mm

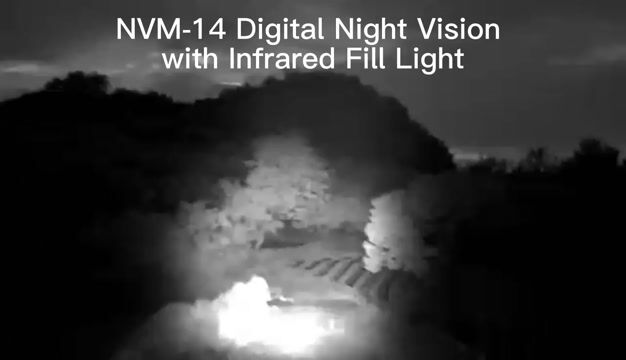

Auxiliary Llight Source	850nm Infrared light

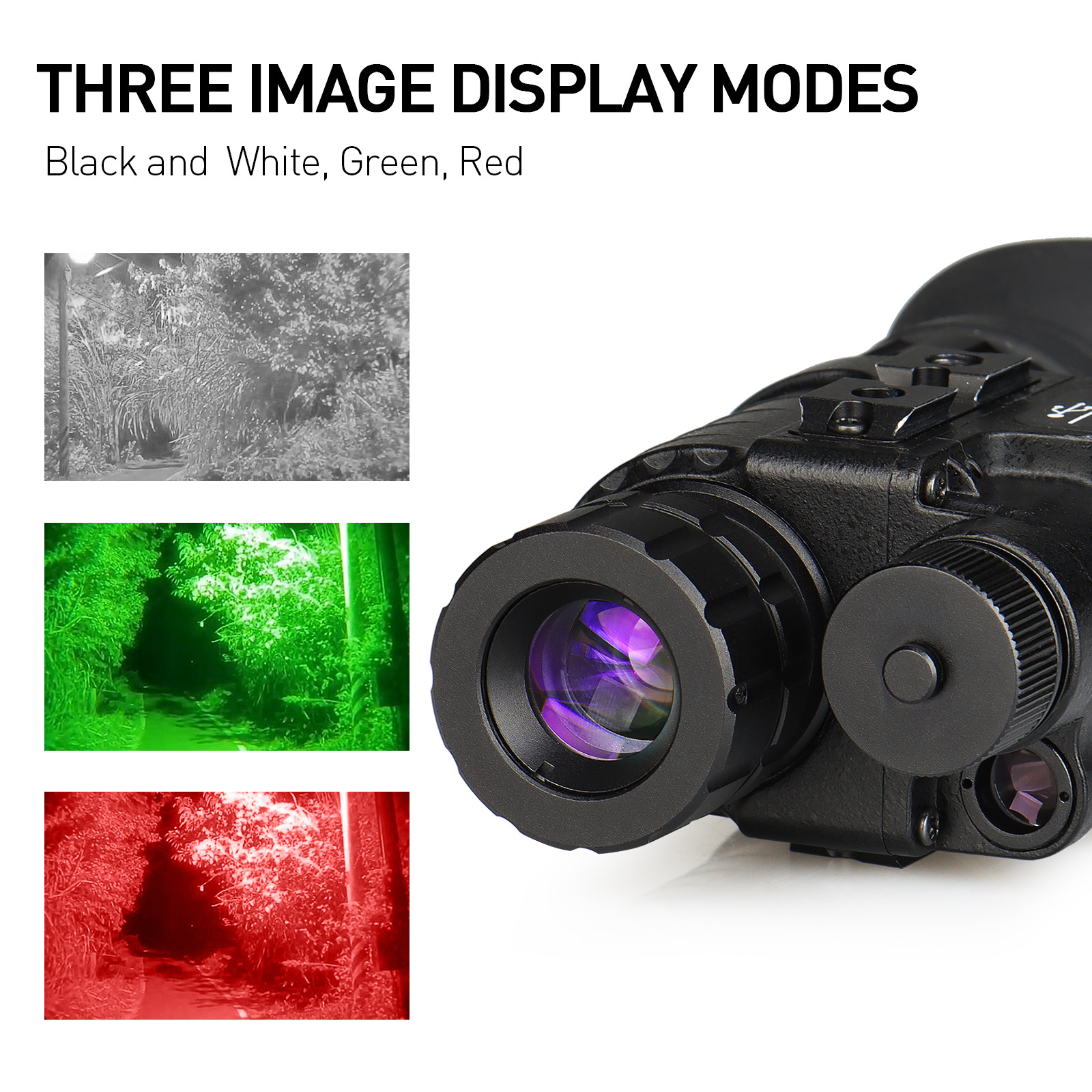

Image Display Mode	Three colors: black/white, red and green
Screen Brightness	Level 1-7 is adjustable
Luminance of the Iinfrared Lamp	Level 1-5 is adjustable
Cross Dividing Line	Six modes, red, green, black three color choice
Date and Time Setting	yes
Video Function	yes
Memory Card	8GB-128GB TF (Optional capacity)
Waterproof	IP65
External Interface	Type-c
Cable	Typle-cable
WIFI	Equipped with APP, compatible with iOS and Android system mobile phones
Electronic Compass	All directions indication
Electronic Gyroscope	Pitch Angle roll Angle dynamic display
Interface to Flip	0°-108°be interchangeable

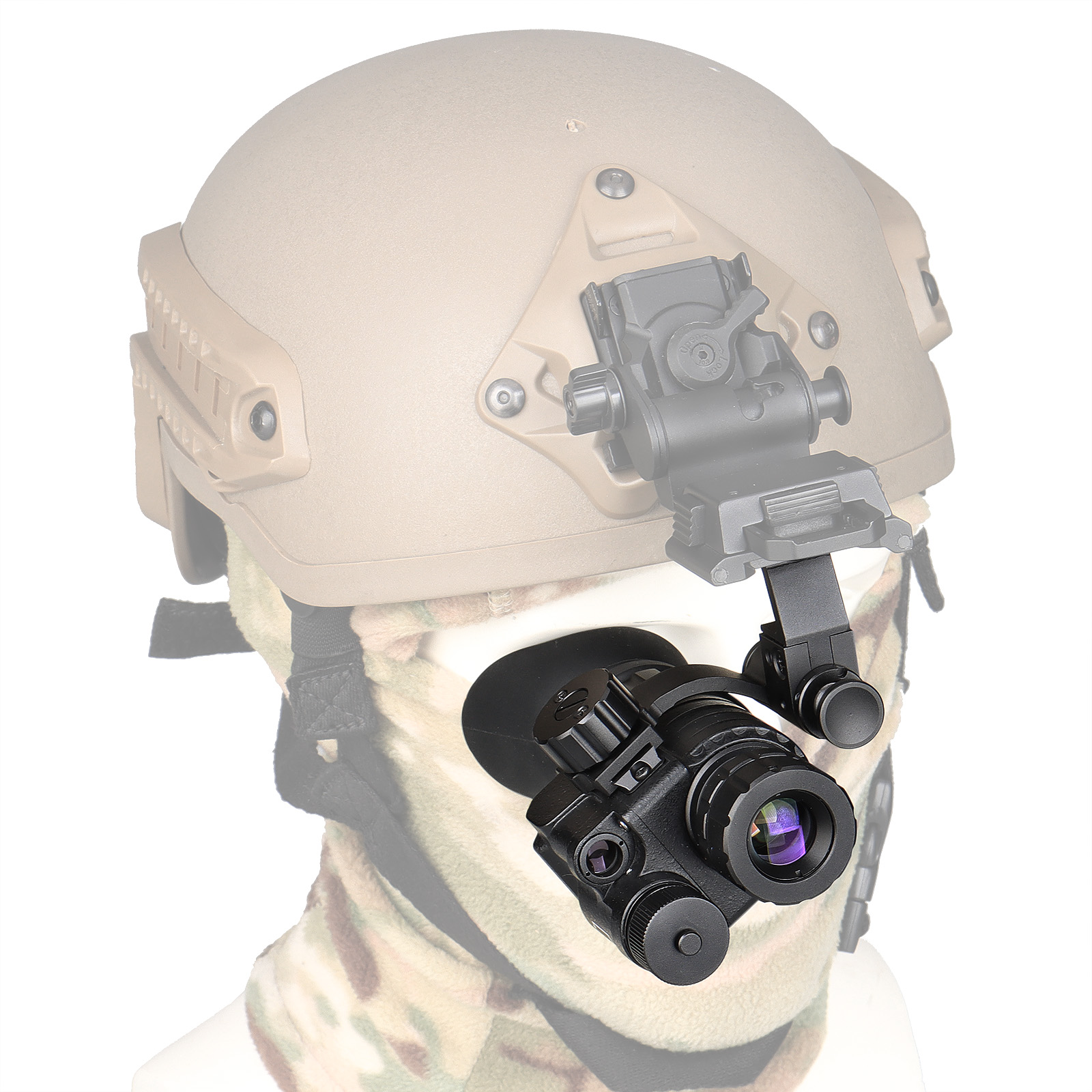

Mechanical Interface Dovetail	Optional to fit two tactical helmet tipper mounts,can switch between left and right eyes.

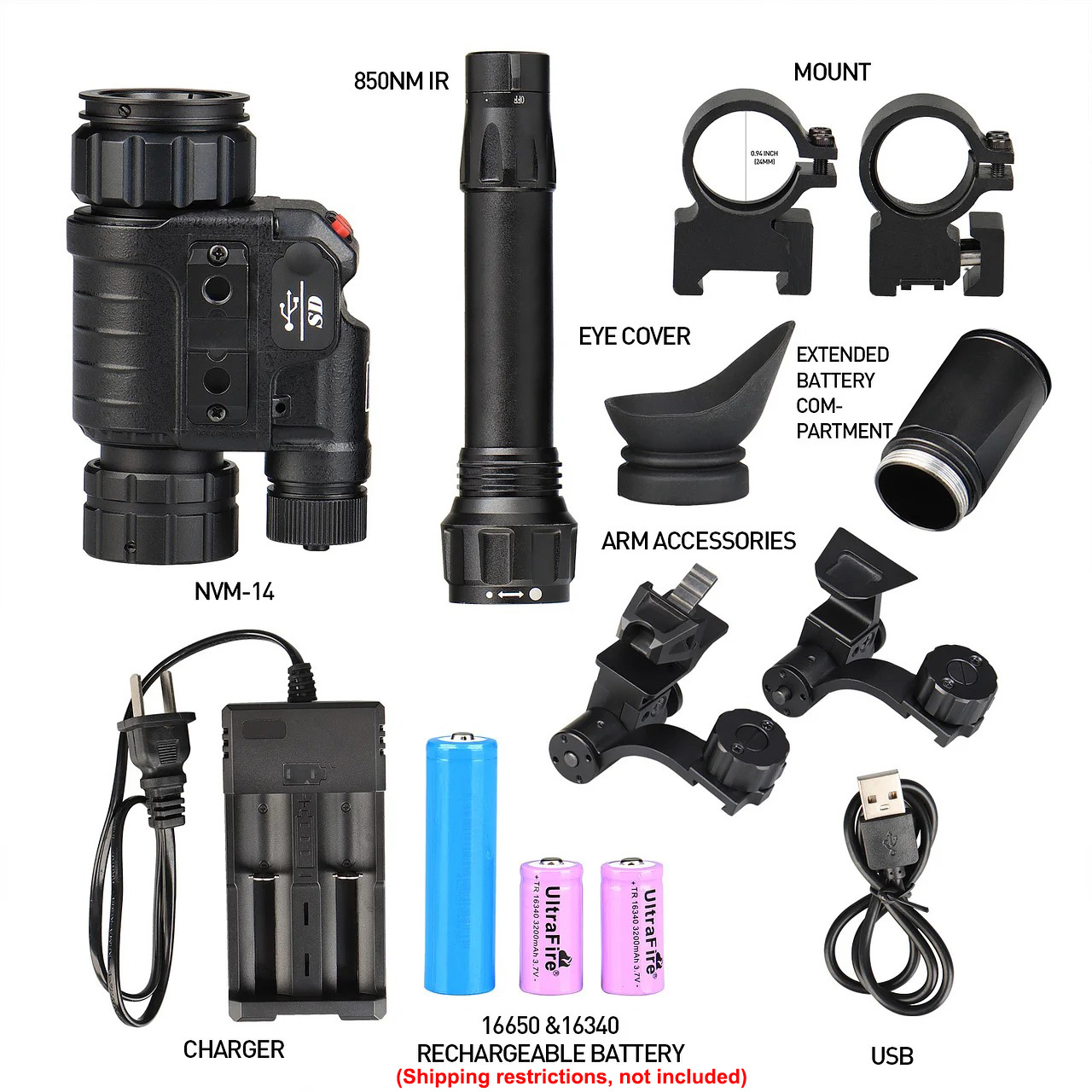

Working Time	Use a 16340 rechargeable battery, continuous working time is more than 1h (infrared light on), 1.5h(infrared light off); Use a 16650 rechargeable battery, continuous working time is more than 3h(infrared light on), 4.5h(infrared light off)
Battery Type

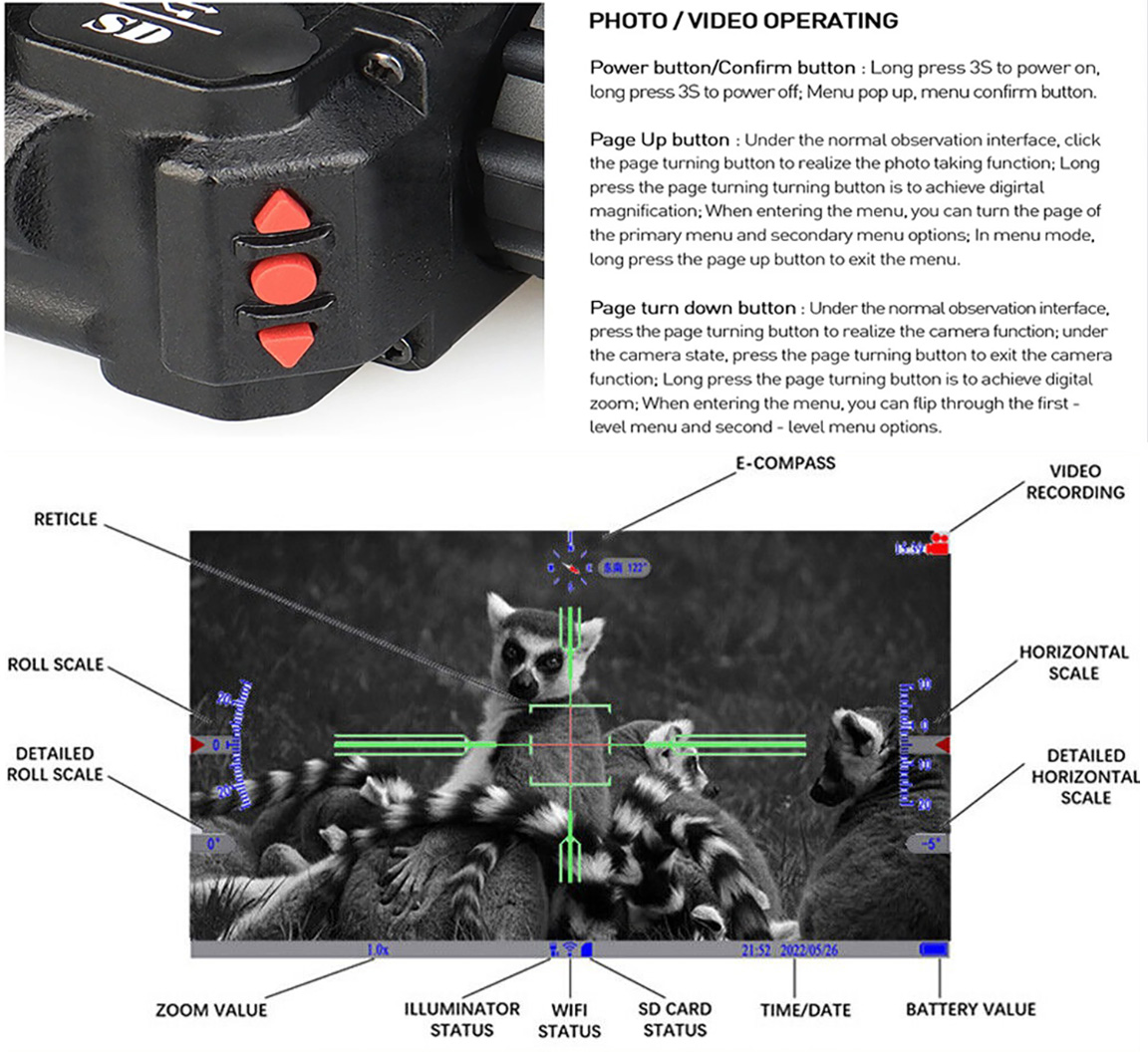

PHOTO/VIDEO OPERATING:Power button/Confirm button : Long press 3S to power on,long press 3S to power off; Menu pop up, menu confirm button.
Page Up button : Under the normal observation interface, clickthe page turning button to realize the photo taking function; Longpress the page turning turning button is to achieve digirtalmagnification; When entering the menu, you can turn the page ofthe primary menu and secondary menu options; In menu mode.long press the page up button to exit the menu.
Page turn down button : Under the normal observation interface.press the page turning button to realize the camera function; underthe camera state, press the page turning button to exit the camerafunction; Long press the page turning button is to achieve digitalzoom; When entering the menu, you can flip through the first -level menu and second - level menu options.

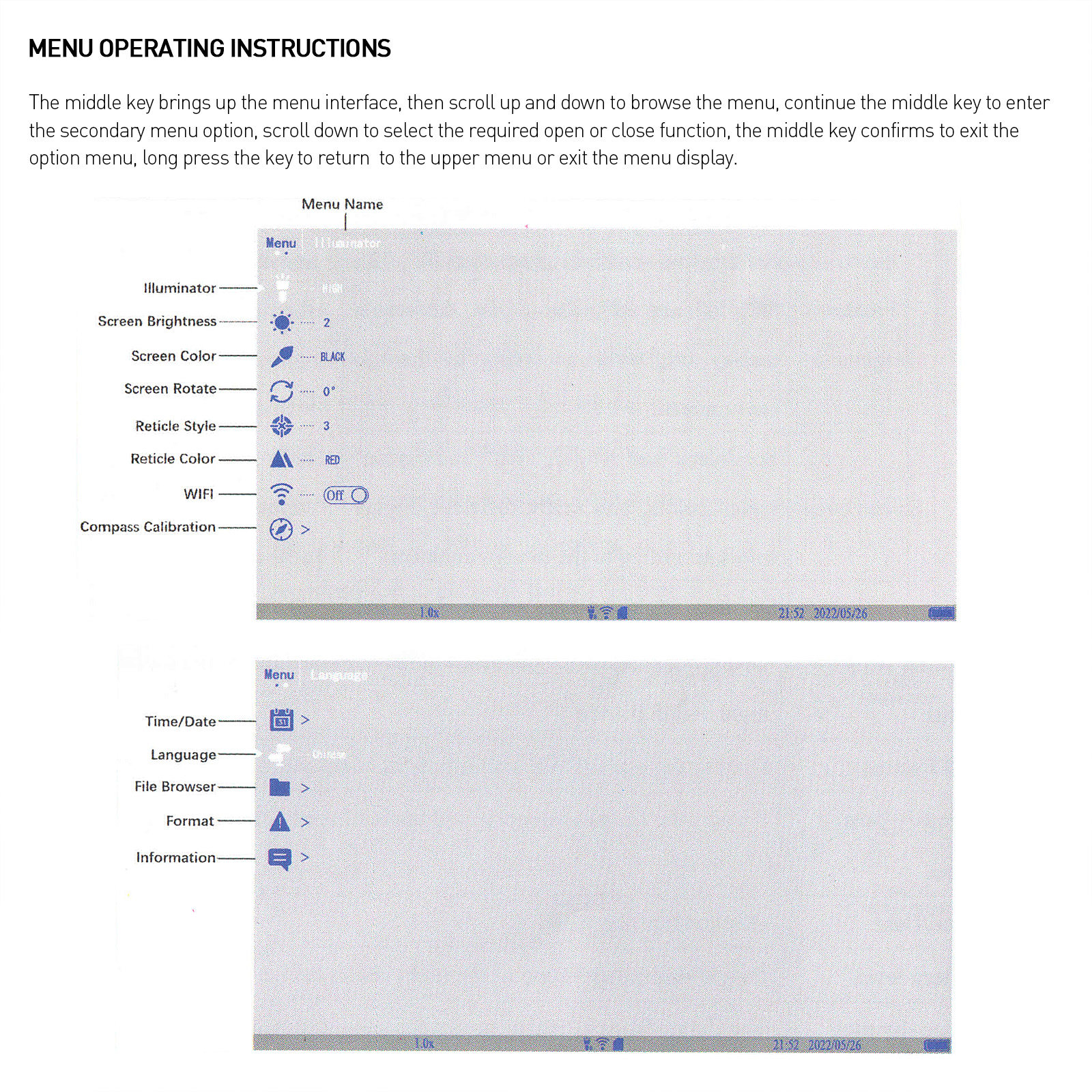

MENU OPERATING INSTRUCTIONS:The middle key brings up the menu interface, then scroll up and down to browse the menu, continue the middle key to entelthe secondary menu option, scroll down to select the required open or close function, the middle key confirms to exit theoption menu, long press the key to return to the upper menu or exit the menu display.
