The TNVC-M250HD Digital Night Vision Monocular is a professional-grade optical device designed to deliver exceptional performance in low-light, complete darkness, and daytime conditions. Equipped with a high-sensitivity SONY IMX385 1/2-inch sensor (0.0001 lux star-level) and 850nm IR illuminator, it captures sharp 1280x960 HD images/videos, even in pitch darkness. With a versatile 1-8x electronic zoom, IP67 waterproof rating, and multi-mount compatibility, this monocular is a reliable tool for hunters, security professionals, and outdoor enthusiasts. Its all-metal body balances durability and portability, while the intuitive joystick control ensures easy operation in any scenario.
- 1-8x Electronic Zoom & Wide FOV: Adjust magnification from 1x to 8x for close-up details or long-range observation. Boasts a 21.5°x12° ultra-wide field of view, covering full scenes without repeated scanning.
- HD Imaging & Star-Level Sensor: SONY IMX385 sensor (0.0001 lux) ensures clear imaging in extreme low light. 1280x960 HD LCOS display delivers rich details, sharp contrast, and immersive viewing.
- 850nm IR Illuminator & 4 Color Modes: Built-in long-range 850nm IR illuminator extends detection/identification range to ≥300m in complete darkness. Switch between 4 color modes (B&W/Red/Green/Color) to adapt to different lighting conditions.
- IP67 Waterproof & Durable Design: All-metal body with IP67 waterproof rating resists moisture, dust, and harsh outdoor environments. Operates in temperatures from -30℃ to +55℃, suitable for all-weather use.

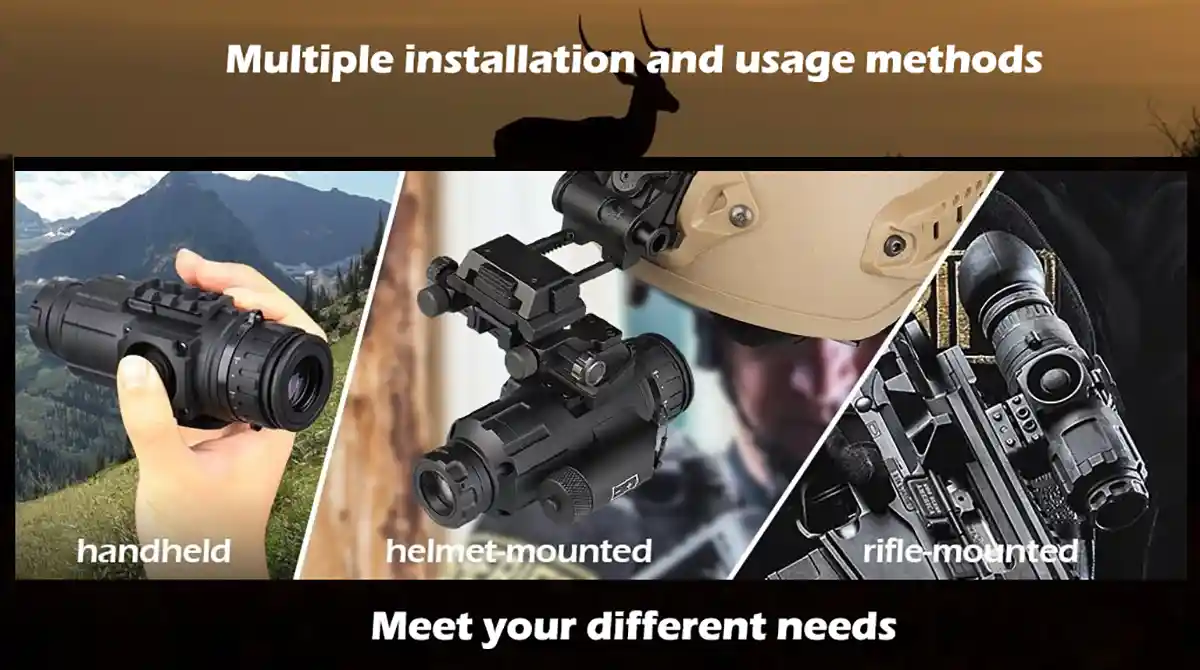

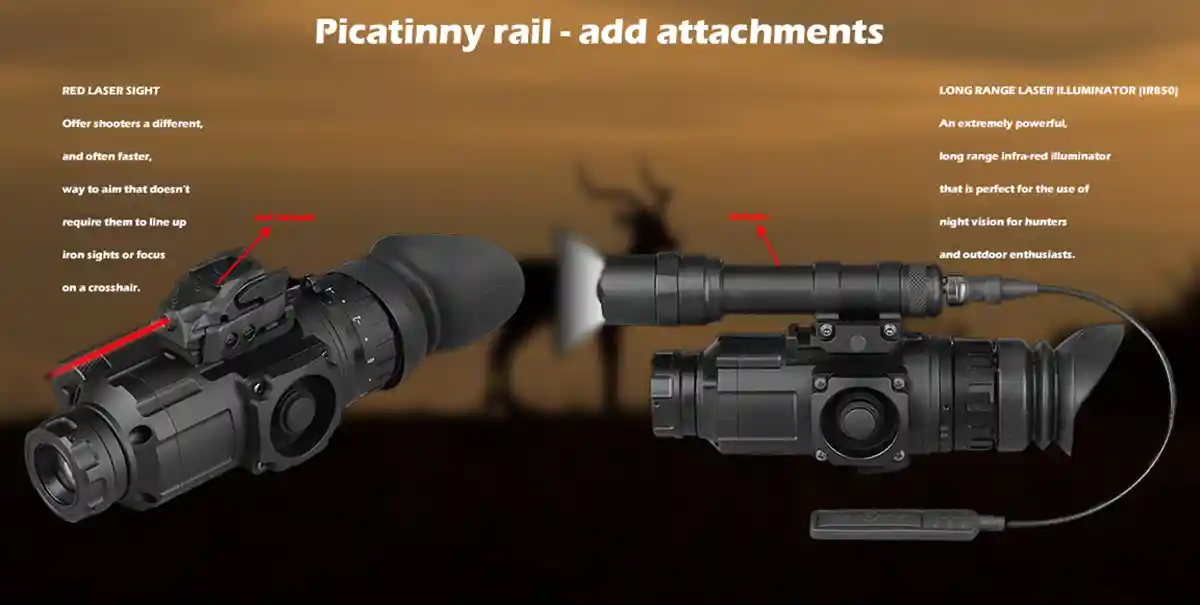

- Versatile Mounting & Multi-Power Supply: Compatible with L4G24 helmet mount, M24 Recon helmet adapter, and Picatinny rail for rifles/tactical gear. Supports 3 battery types (CR123A/HY16340/UR16650) for flexible power options.

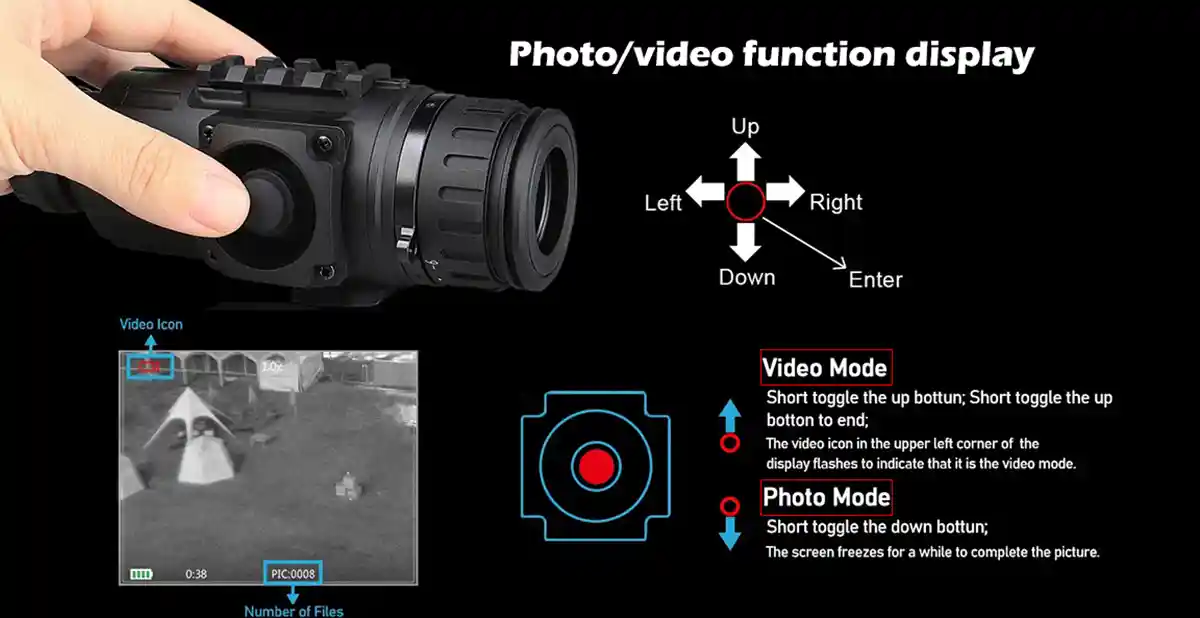

- Intuitive Operation & Rich Functions: Joystick controller enables one-click access to photo/video recording, brightness adjustment (3/5/7/9 levels), and one-click gun calibration. 6 customizable reticle styles (3 colors) for precise aiming.
- Storage & Connectivity: Built-in 8GB memory card (8GB-128GB optional) for photo/video storage. USB+TVOUT interface allows file transfer to computers or video output to external screens.
| Parameter | Specification |
| Magnification | Electronic: 1x-8x; Optical: 1x |
| Objective Lens | 16.5mm (effective clear aperture, ultra-broadband coating) |
| Field of View (FOV) | 21.5°×12° |
| Viewing Range | Visible: ≥500m; Detection/Identification: ≥300m each |
| Sensor | SONY IMX385 (1/2 inch, 0.0001 lux, 1280×960 resolution) |

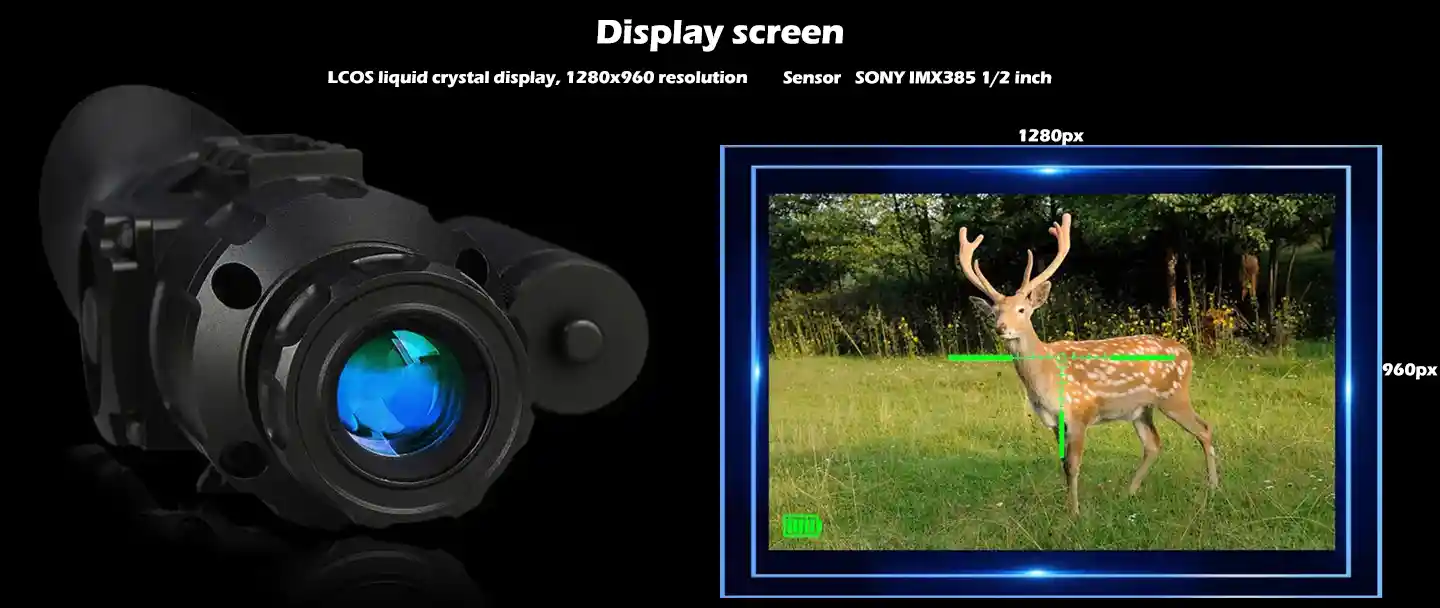

| Display | 0.4-inch LCOS LCD (1280×960 HD) |
| IR Illuminator | 850nm long-range IR LED |
| Waterproof Rating | IP67 |
| Diopter Adjustment | +2~-6 |
| Eye Relief | 27mm |
| Recording Function | Photo/Video: 1280×960 HD |
| Storage | 8GB (built-in); 8GB-128GB (optional expansion) |
| Power Supply | 3.7V CR123A/HY16340/UR16650 lithium battery (not included) |
| Working Time | 45-150 mins (varies by battery type) |
| Weight (Without Battery) | 362g |
| Overall Size | 145.5×76.5×56mm (without eye mask) |
| Operating Temperature | -30℃ to +55℃ |
| Storage Temperature | -35℃ to +60℃ |
| Key Functions | 5-level brightness adjustment, 9 crosshair modes (R/G/Black), one-click calibration, joystick control |
Key Features
-
Ultra-High Resolution Imaging
-
-
Rugged & Weatherproof Build
-
-
