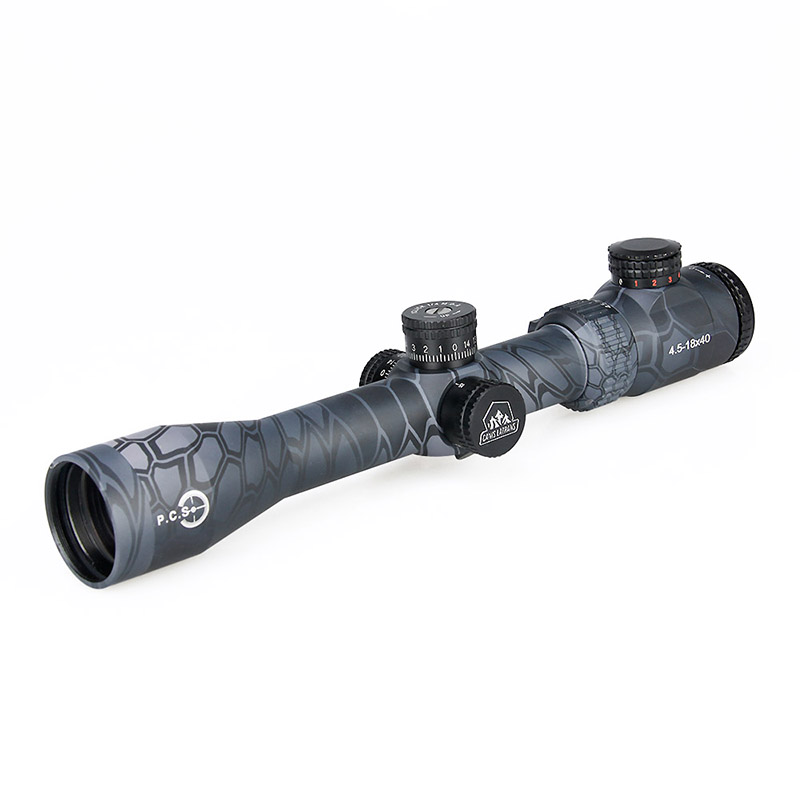

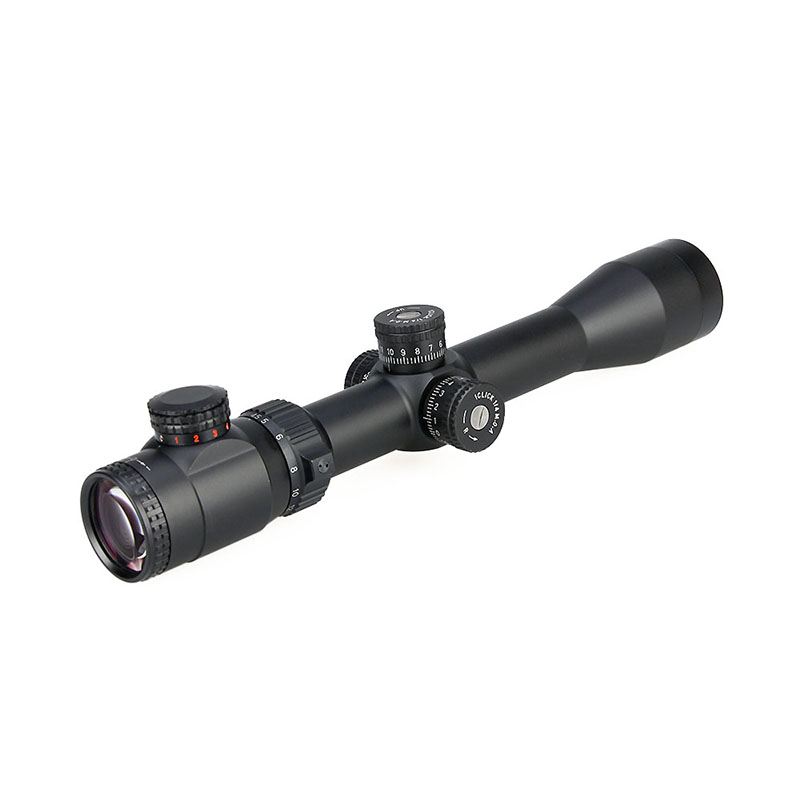

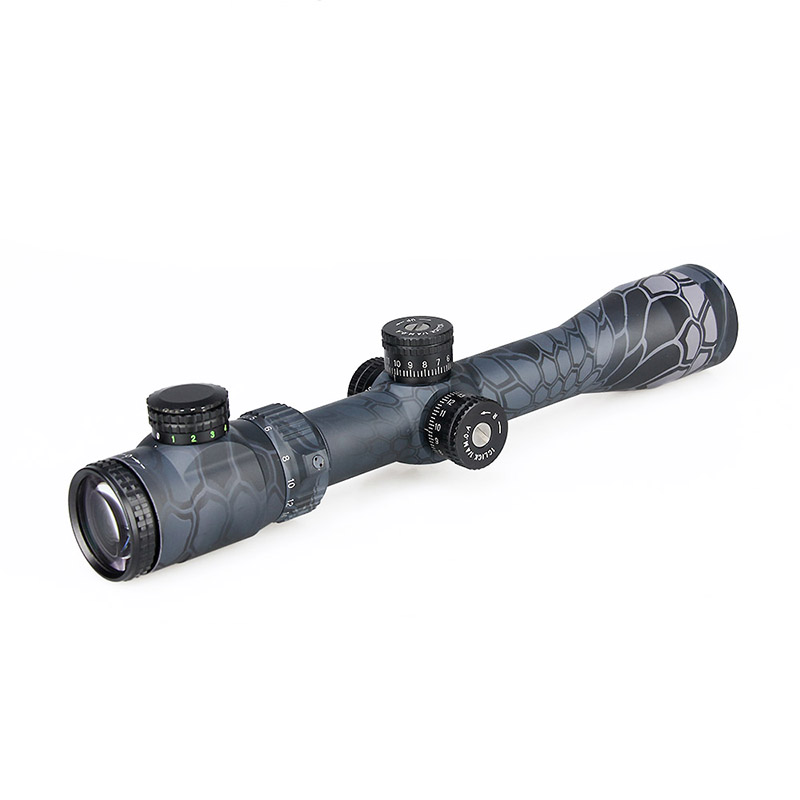

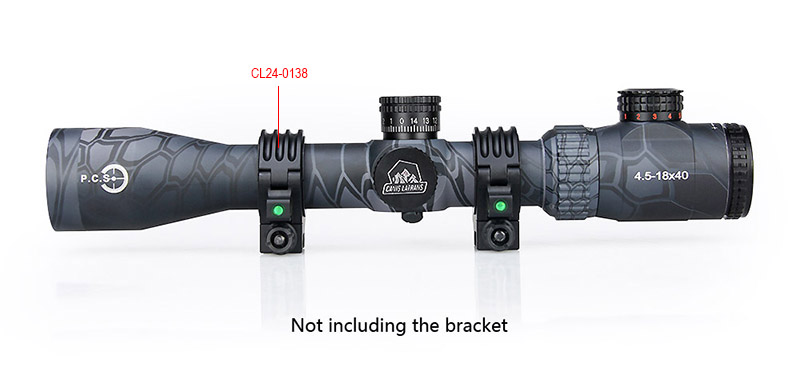

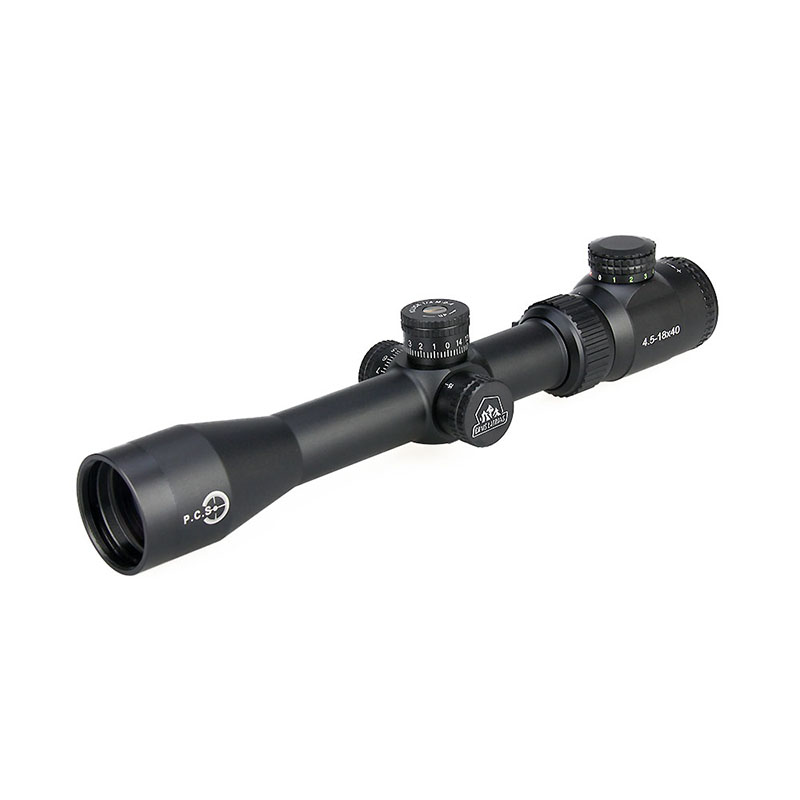

TM4.5-18x40 Rifle Scope

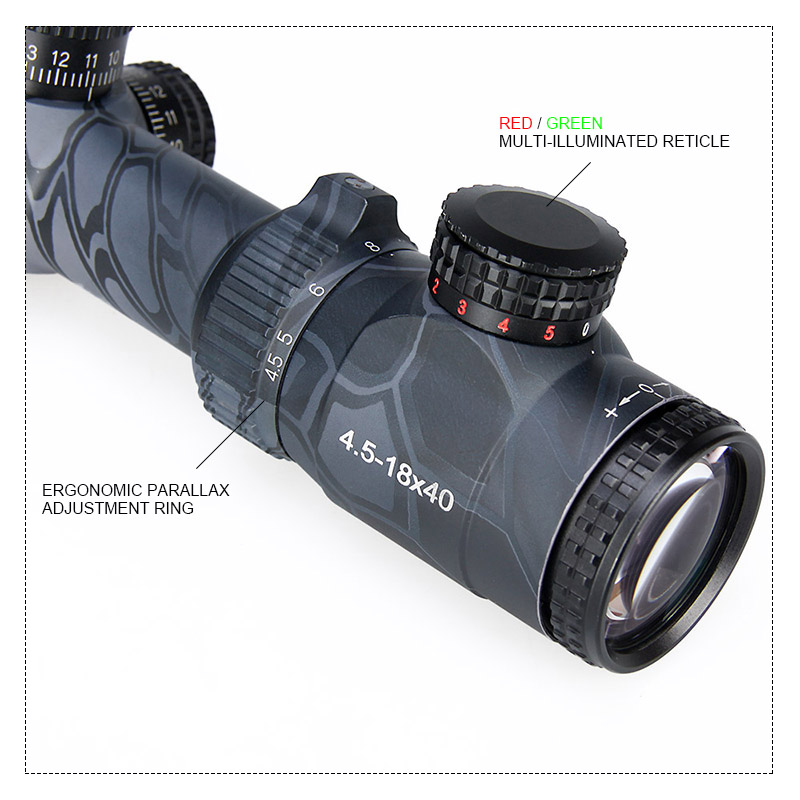

The TM4-5-18X40 Rifle Scope delivers versatile precision for mid-to-long-range engagements, featuring a 4-18X variable magnification range and 40mm objective lens for balanced light gathering. The MIL-STD reticle (MIL-DOT style) enables holdover calculations for bullet drop compensation, while multi-layer broadband coating enhances light transmission by 92% for clear, high-contrast imagery in dawn/dusk conditions. Constructed from rugged 6061-T6 aircraft aluminum, this scope is nitrogen-purged for fogproof performance and O-ring sealed for IPX6 waterproofing, with a shockproof design that withstands heavy recoil from .300 Win Mag to 6.5 Creedmoor. Engineered for tactical accuracy, the side focus (SF) parallax adjustment eliminates image distortion from 50–500m, while 1/4 MOA finger-adjustable turrets offer precise windage/elevation corrections with audible clicks. The fast-focus eyepiece ensures rapid reticle clarity, and the zero-stop mechanism maintains zero through repeated adjustments. Weighing 22oz with a 14" length, this scope mounts seamlessly on Picatinny/Weaver rails, ideal for AR platforms, bolt-action rifles, or precision hunting setups. Whether engaging targets at 100m or dialing in for 500m shots, the TM4-5-18X40’s combination of tactical functionality and optical performance makes it essential. The hard-anodized finish resists abrasion, and the extended eye relief (3.5–4") reduces eye strain during prolonged use. Backed by a design that prioritizes reliability in the field, this scope is built for hunters and tactical operators who demand consistent accuracy across diverse environments.

(image quality requirement)	The image is clear, need correction distortion,field curvature, color shading
(parallax)	≤0.5D
(reticle displacement)	≤1.5MOA
(FOV)	≤0.5D
(adjust screw)	Regulating range in a straight line, no empty back, sounds silvery
(exit pupil )	≤10mm
(view of angle)	19°

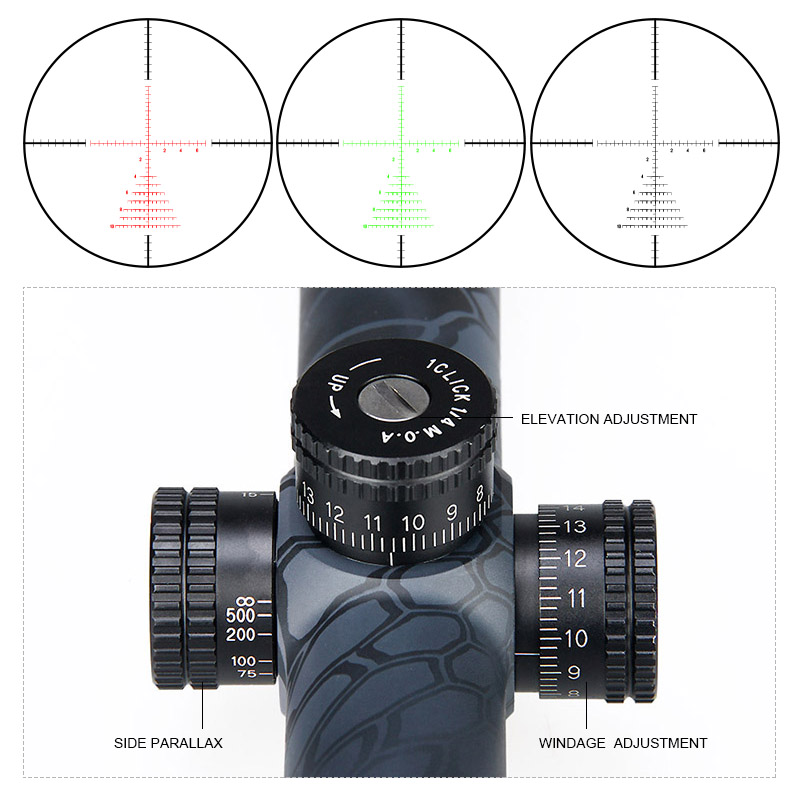

(reticle)	second reticle
(Magnification)	4.5-18
(Specification)	4.5-18x40
(Reflex Lens Coating)	Multilayer coating
(Overall Light Transmission)	＞85％
(Objective Lens Diameter)	40
(fieldangle)	4.5°-1.1°
(Parallax)	≤1MOA
(Parallax Correction)	100yds
(Exit pupil diameter/mm)	8.9-2.23
(distance of exit pupil)	3.5
(Focusing range)	15-∞
(Adjustment Type)	Outside
(Click Value)	1/4MOA
(Spiral Direction)	clockwise
(elevation/windage adjustment range)：	±40MOA
Reticle	F142
Reticle Lighting Brightness	12 gear including gap gear
(resistance)：	3.5kg
Apperance  Parameter
(Finish & Coating)	Anodize
(Color)	black Tyhone
(Texture of material)：	Aluminum alloy
(Tube diameter)	30mm
(Marking)	according to you
(Length)	315mm
(Height)	65mm
(Width)	70mm
(Weight)	630g
Physical Properties
(impact)	1000g 5 times
(fog-proof)	Minus 15 ° (30 min) can't fog or dispersed within 6"
(water-proof)	52℃ 10inch deep，3min
(repeat clamp reticle displacement)	≤1.5MOA
(reticle displacement after the shock)	≤1.5MOA
(operation temperature range):	-30°~ +50°
(storage temperature range)：	-50°~+70°
(Mounting Styie)
(Battery)	CR2032
(Battery Life)	3000
(power supply  )	3v
