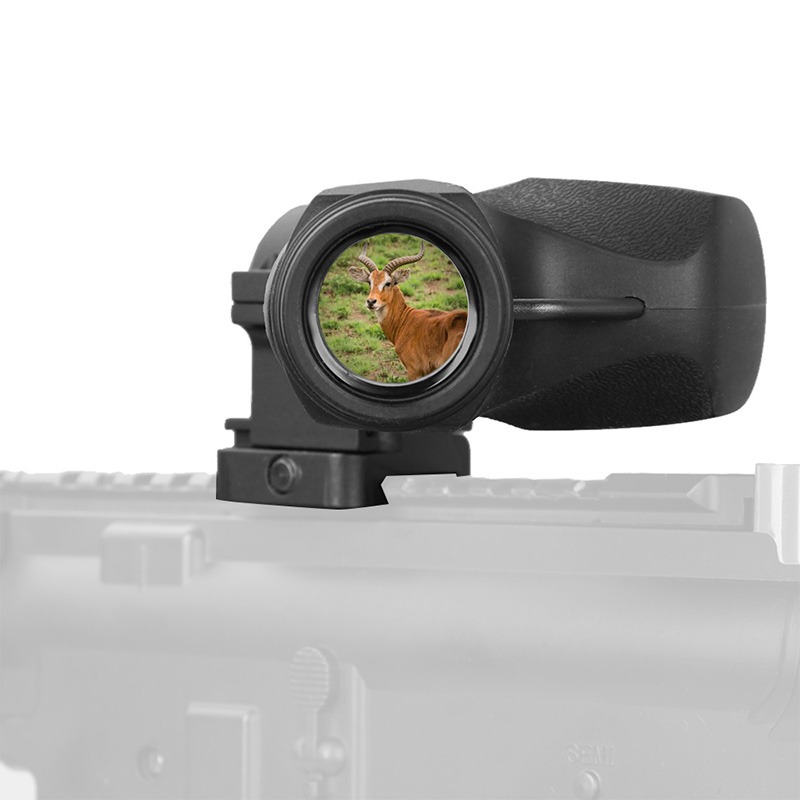

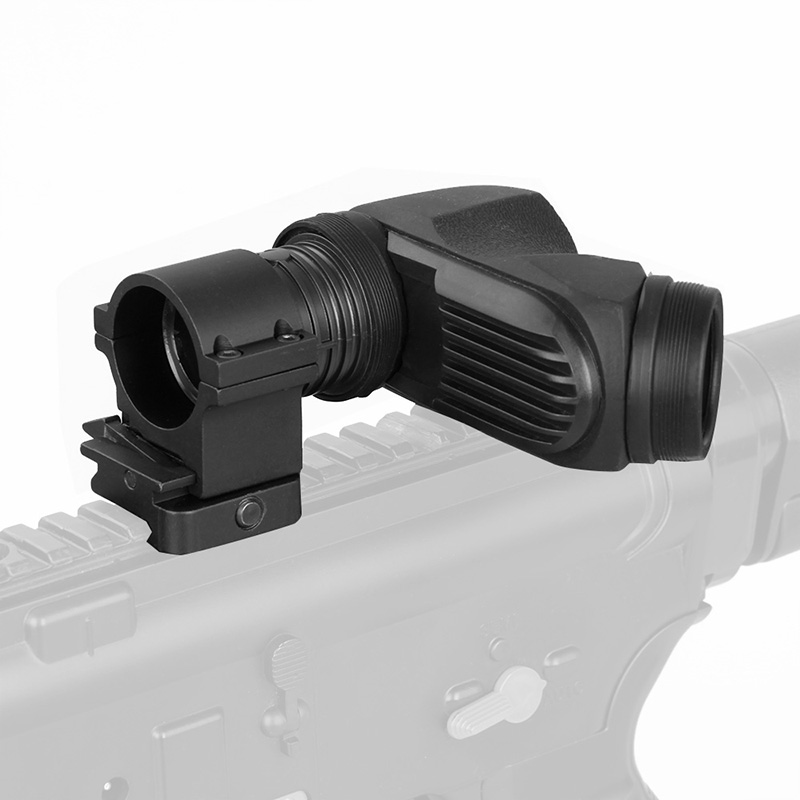

1X Best 260° Ampoint CEU --Rail:21.2mm and central height:30mm

The CEU (Corner Engagement Unit) revolutionizes tactical operations with its 260° rotational design, enabling operators to aim around corners, up staircases, or down tunnels without exposing themselves. Using a dual-mirror reflective system, it delivers a true, non-reversed image with 1X magnification and unlimited eye relief, ensuring seamless target acquisition. Compatible with all sight systems via the TwistMount base, it allows co-witnessing with optics using low/high rise rings. Constructed from high-strength glass-reinforced polymer with anti-reflex coated mirrors, it withstands -45°C to +55°C operation, 25m submersion, and 500G shocks. Weighing just 130g (CEU only), it mounts to Picatinny rails with 30mm/40mm optical axis heights, turning standard weapons into scouting tools. Ideal for military, law enforcement, and CQB scenarios, this NVD-compatible device maintains zero impact on weapon POI while enhancing situational awareness in extreme conditions.

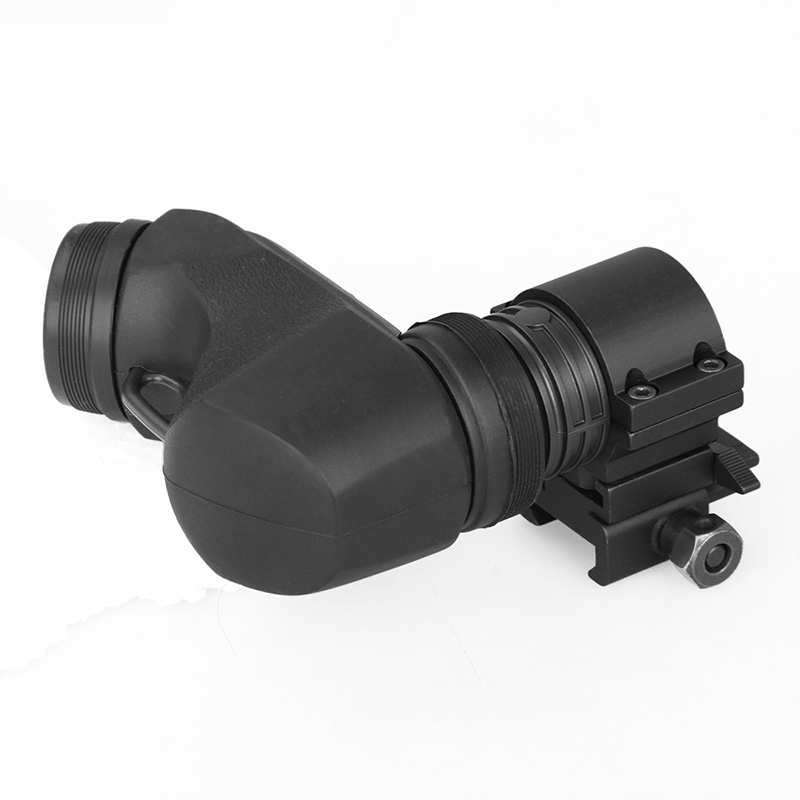

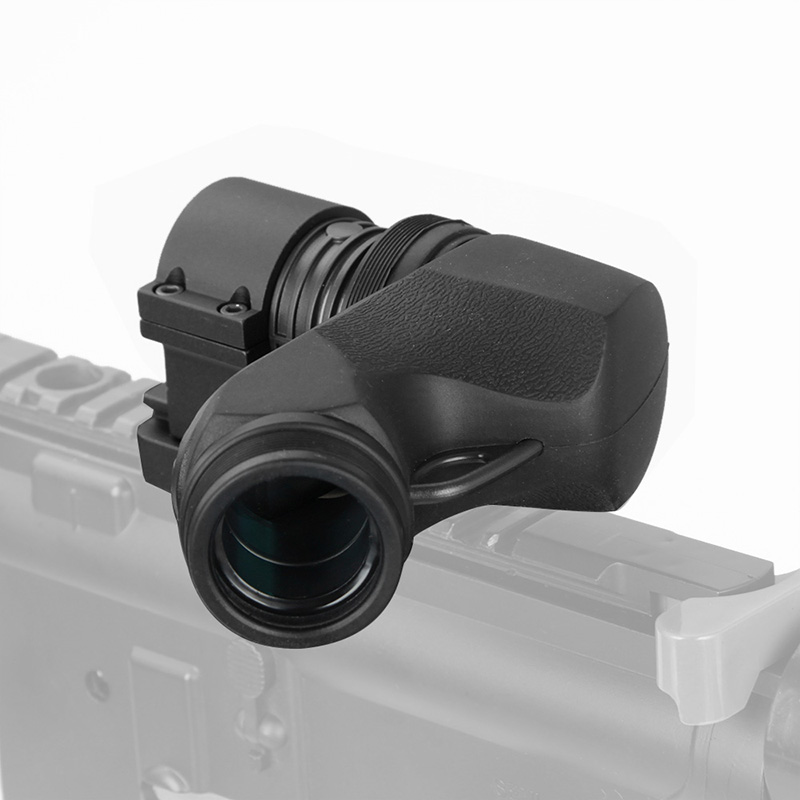

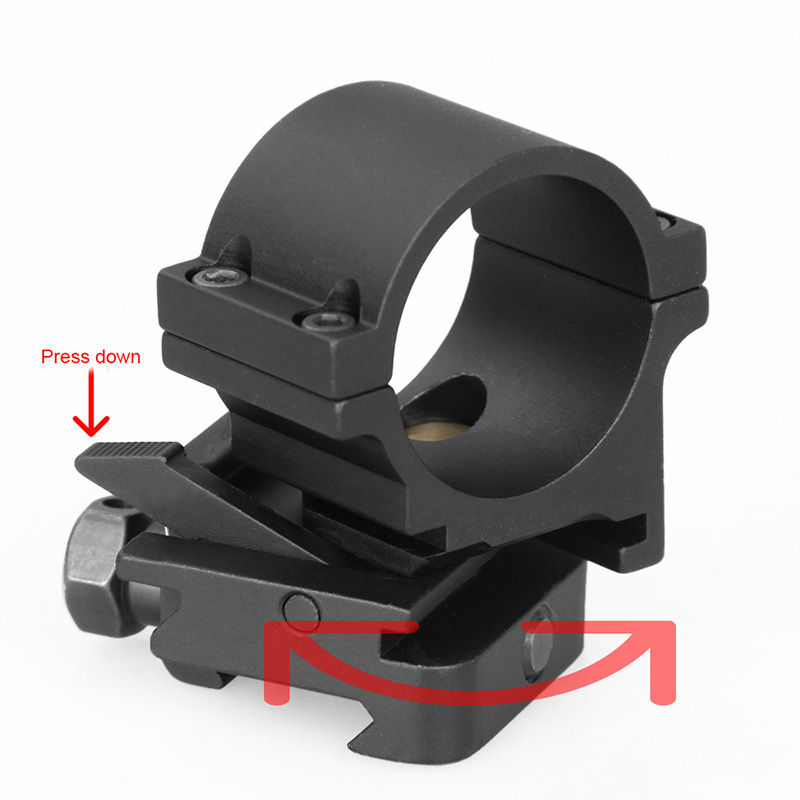

The CEU rotates a full 260° allowing the operator to safely look around either right or left-hand corners, up staircases or down tunnels from almost any angle. To mount the CEU, use the  TwistMount base and choose the CEU ring which allows co-witnessing with the  sight.

UNIQUE FEATURES

Designed to be compatible with all sights

Designed to provide a “true image,” NOT a reversed mirror reflection

Allows aiming over walls, under cars, around corners without exposing head and torso

Does not affect the weapon’s point of impact

Can be passed between team members

Rugged, affordable device

Easily removed from the weapon if necessary

Turns a standard infantry weapon into a scouting tool

No need to equip a team member with a specialized weapon

Rotates a full 260°

Designed to withstand extreme conditions



1.2  SPECIFICATION  CEU

Optical System

Operating Principle:    Two mirrors,reflective device,for true target view

Optical Magnification:  1X,unlimited eye relief

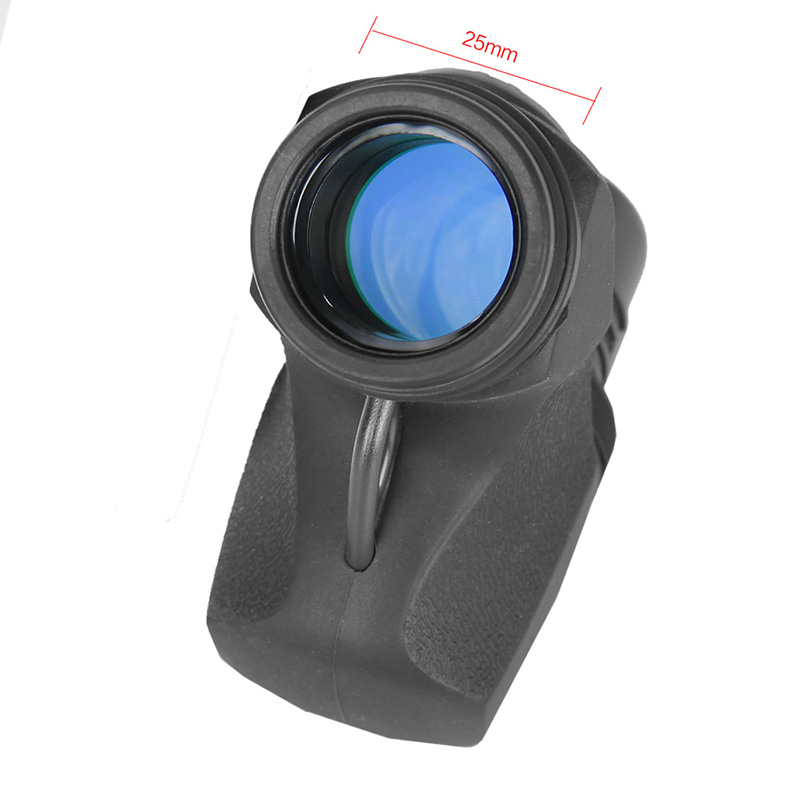

Clear Aperture:   25 mm diameter“see through”

Optical Coating:  Anti reflex coated protection elements and high reflection

                 Coated mirrors for maximum transmission,NVD compatible

Optical Signatrue: The unit does not influence forward optical signature

Physical Specifications

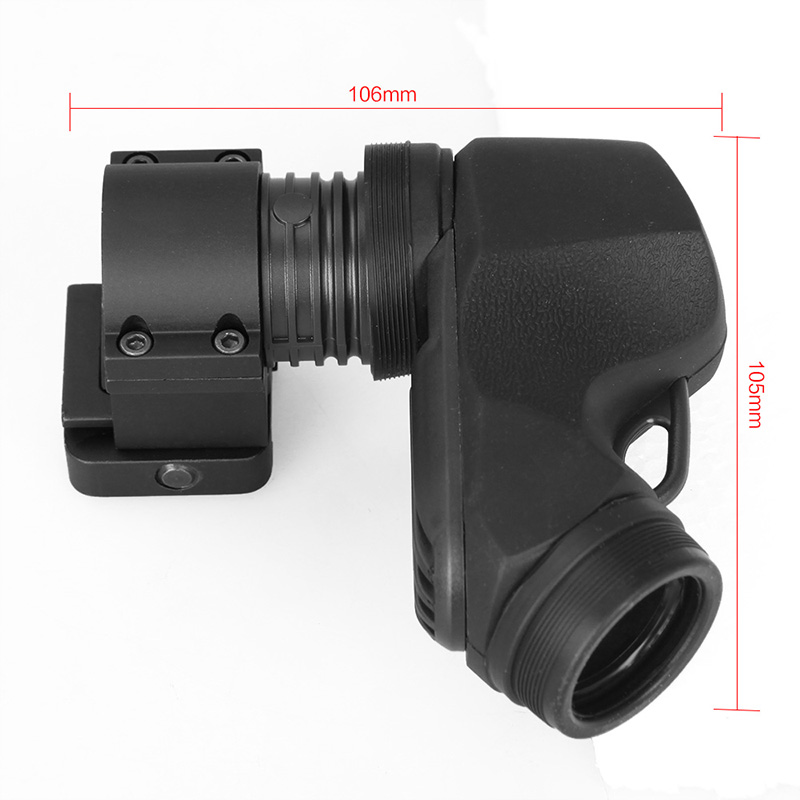

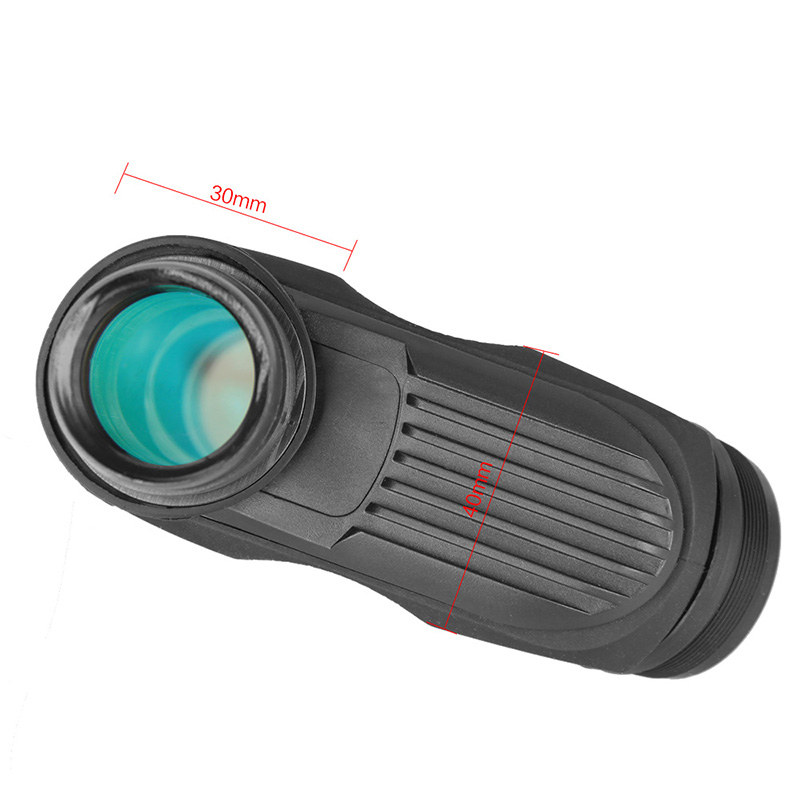

Dimensions

Length:   90 mm(3.5”)

Width:    115mm(4.5”)

Height:   40mm(1.6”) CEU only,detached from the CEU Rise Ring and  Twist Mount base

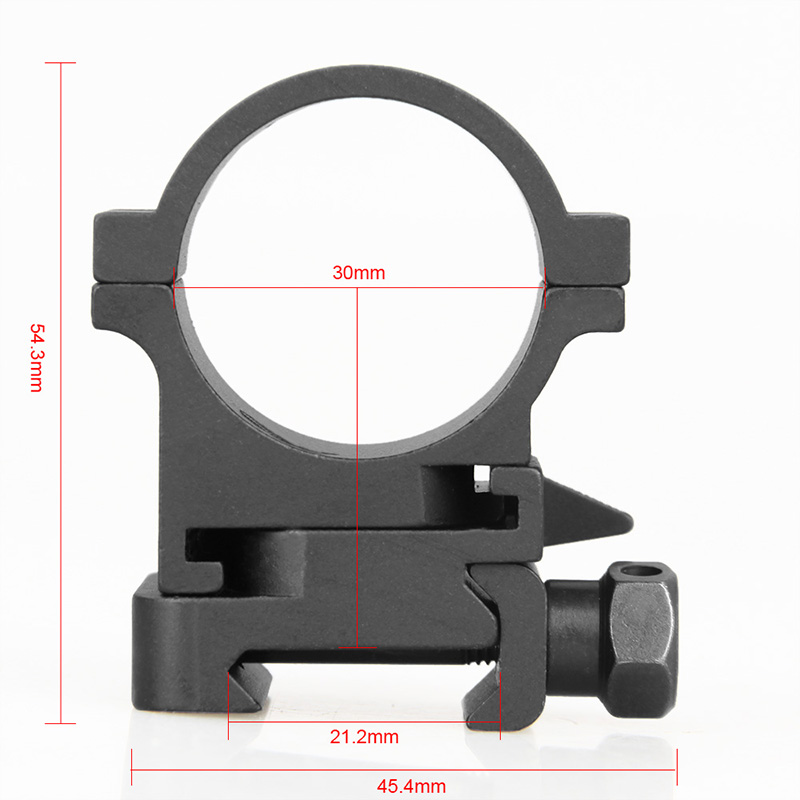

Height of optical axis:  30mm (1.2”) or 40mm(1.6”) altematively over top surface of  the Picatinny Rail

Rotation around optical axis:  ± 130º, measured from CEU pointing vertically

                             Upwards, as reference

Mass:  130 grams(4.6oz), CEU only,separated from the TwistMount.

        Low Top ring 35 grams (1.2oz)

        High Top ring 55 grams (1.9oz)

        TwistMount base part 60 grams (2.1 oz)

Material Housing: High strength glass reinforced polymer,grey,non-glare finish

Material Cover: Rubber,black, non-glare finish

Material Ring: Extruded,high strength aluminum,anodized

Material TwistMount : Extruded,high strength aluminum,anodized

Radioactive Materials: None(Tritium 0%,Thorium 0%,Thorium Fluoride 0%)

Materials:   None (Mercury 0%)

Environmental Specifications

Temperature Range, Storage: -45℃ to +71℃ (-50ºF to +160ºF)

Temperature Range. Operation: -45℃ to +55℃ (-50ºF to +131ºF) instantaneous.

Humidity: 95% at 20℃ (68ºF) to 50℃ (122ºF),Cycling

Immersion:  25 m(80ft.)

Shock: 3X500 G 0.7-1.1ms

Vibration: XYZ:10-30 Hz: 3mm,30-150Hz: 5.75 G for 30 minutes

Chemical Resistance: Materials not affected by cleaning chemicals, lubricants, oil or insect repellants.

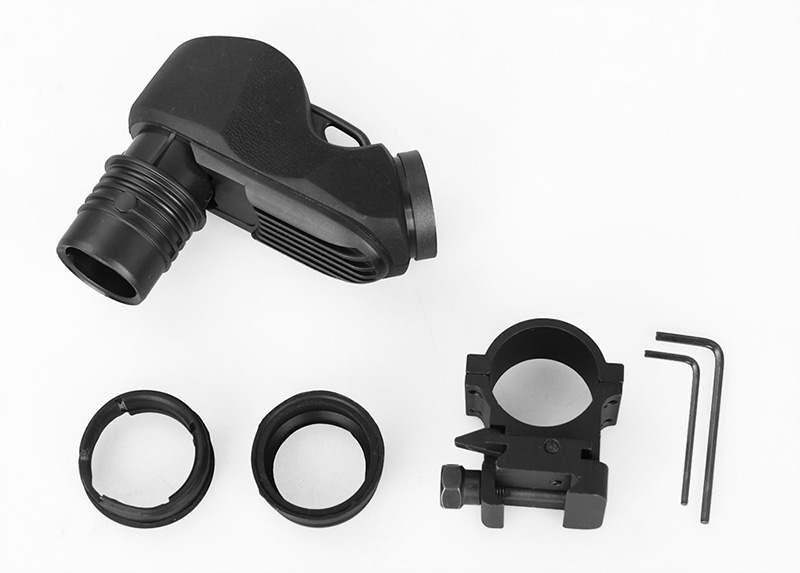

1.3  LOCATION OF COMPONENTS

See figure below

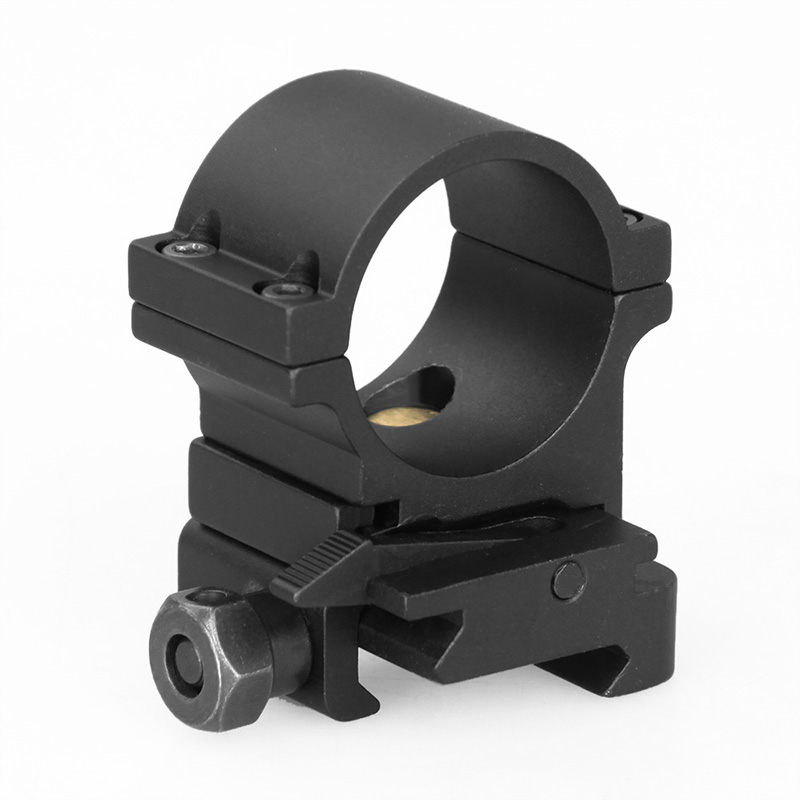

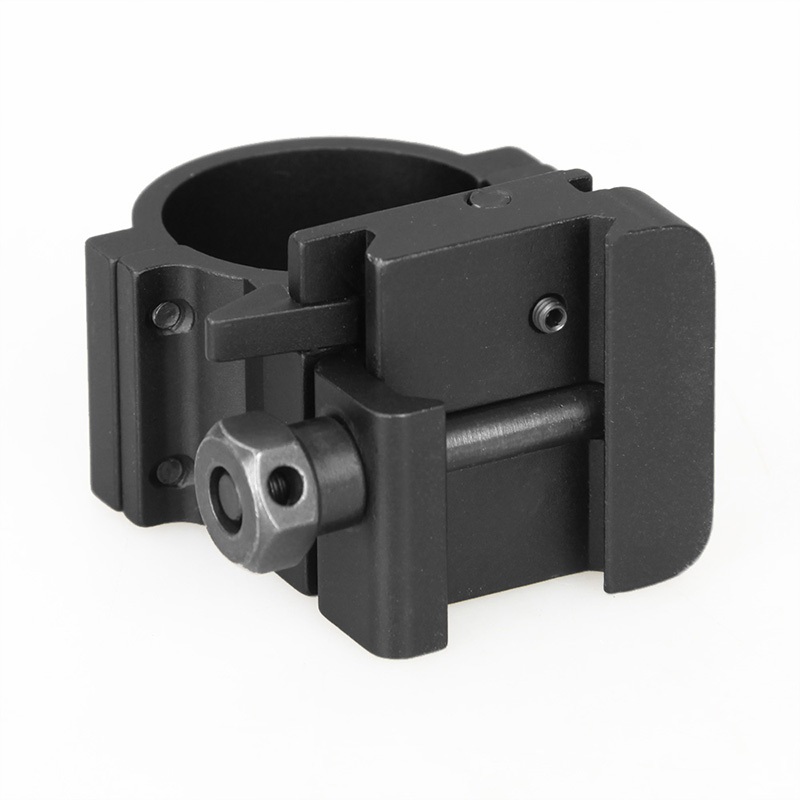

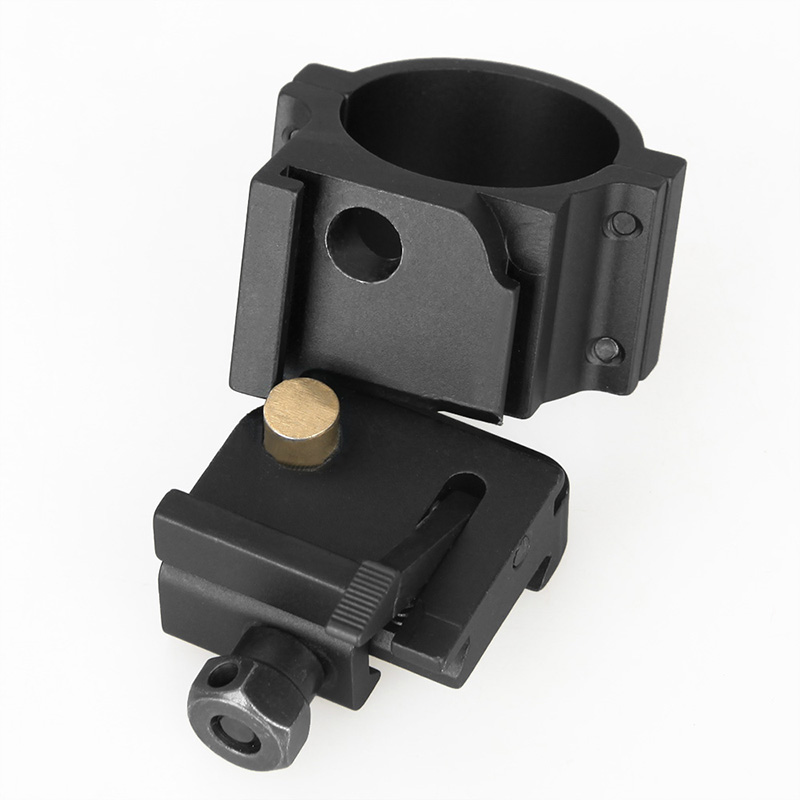

• Locking bar 2) TwistMount base        3) Nut            4)   CEU Low Rise Ring

5)  CEU High Rise  Ring      6) CEU low Rise Ring
