(image quality requirement) |
The image is clear, need correction distortion,field curvature, color shading |
(parallax) |
≤0.5D |
(reticle displacement) |
≤1.5MOA |
(FOV) |
≤0.5D |
(adjust screw) |
Regulating range in a straight line, no empty back, sounds silvery |
(exit pupil ) |
≤10mm |
(view of angle) |
19° |
(reticle) |
second reticle |
(Magnification) |
4.5-18 |

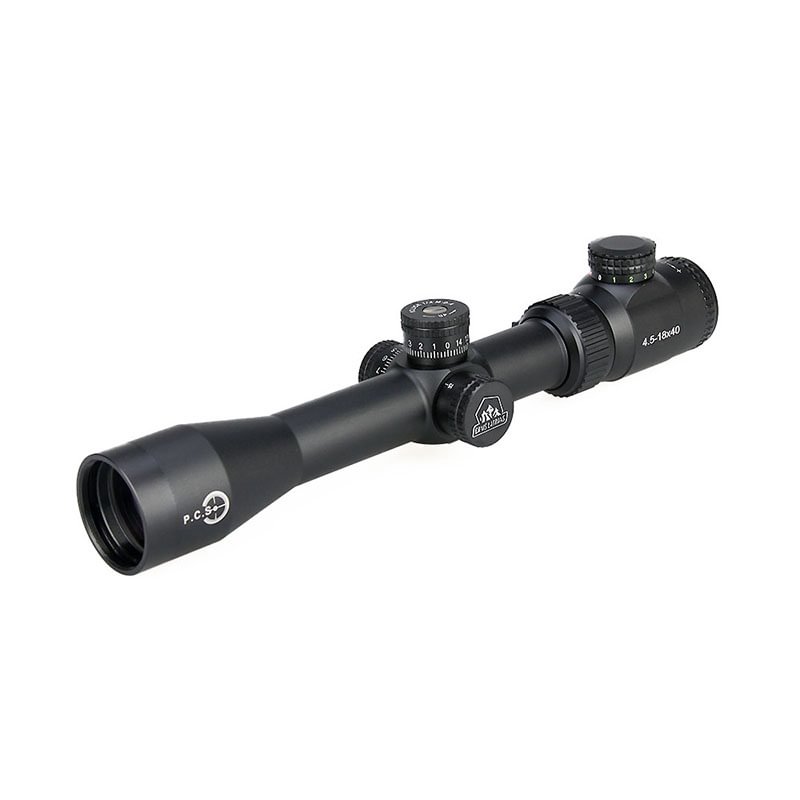

(Specification) |
4.5-18x40 |
(Reflex Lens Coating) |
Multilayer coating |
(Overall Light Transmission) |
>85% |
(Objective Lens Diameter) |
40 |
(fieldangle) |
4.5°-1.1° |
(Parallax) |
≤1MOA |
(Parallax Correction) |
100yds |
(Exit pupil diameter/mm) |
8.9-2.23 |
(distance of exit pupil) |
3.5 |
(Focusing range) |
15-∞ |
(Adjustment Type) |
Outside |
(Click Value) |
1/4MOA |
(Spiral Direction) |
clockwise |
(elevation/windage adjustment range): |
±40MOA |
Reticle |
F142 |
Reticle Lighting Brightness |
12 gear including gap gear |
(resistance): |
3.5kg |
Apperance Parameter |
(Finish & Coating) |
Anodize |
(Color) |
black Tyhone |
(Texture of material): |
Aluminum alloy |
(Tube diameter) |
30mm |
(Marking) |
according to you |
(Length) |
315mm |
(Height) |
65mm |
(Width) |
70mm |
(Weight) |
630g |
Physical Properties |
(impact) |
1000g 5 times |
(fog-proof) |
Minus 15 ° (30 min) can't fog or dispersed within 6" |
(water-proof) |
52℃ 10inch deep,3min |
(repeat clamp reticle displacement) |
≤1.5MOA |
(reticle displacement after the shock) |
≤1.5MOA |
(operation temperature range): |
-30°~ +50° |
(storage temperature range): |
-50°~+70° |
(Mounting Styie) |
|
(Battery) |
CR2032 |
(Battery Life) |
3000 |
(power supply ) |
3v |
